Rich DeAngelis's Vector Force
Manufacturer:Estes
Diameter:1.3300 inches
Length:28.2500 inches
Skill Level:1
Style:Sport

The Vector Force: The Vector Force is a modern Estes kit. This was my first model I made as a BAR. It had very good quality balsa fins on my kit, thick and sturdy.  You can see the design is inspired by air defense missiles.  It is rather tall, but somewhat heavy because of the two reducers.  Because it has two reducer stages it has two separate payload tubes.  Estes tells you to glue the payload tubes, but why? Good idea if you want to be sure the rocket doesn't separate in flight, but why waste two very nice payload bays?  I just make sure they are always good and tight with some masking tape.  Mine is painted school-bus yellow and gloss black to better match the included decals. I added about 3 heavy coats of clear coat for a really deep shine.  String stability tests with a C motor required about 20-ish grams of nose weight, but now it flies really straight up - provided there is little wind. The top payload tube has vent holes for a barometric altimeter. I've recorded flights in excess of 400 feet with C6 motors. This is my current go-to flagship rocket. I have tried some test flights with composite D engines, to see if I could kick this puppy past 1000 feet. It sure did! In the process, the shock cord was torn out from the mount. This model was repaired by installing a custom ejection baffle with a Kevlar shock cord attachment. Now I think she'll hold up to a few more D-powered launches and ejections. This rocket has flown higher than the NY Times Building in NY, and also the Chrysler Building including the pinnacle, and the Bank of America Plaza in Atlanta.

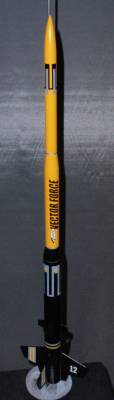

Estes New Vector Force

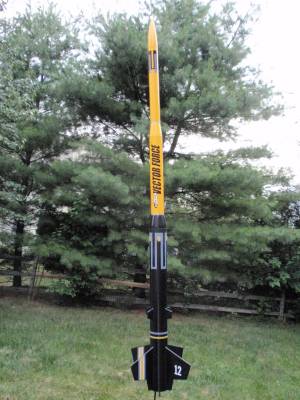

Vector Force
Vector Force Booster
Vector Force's Two Payloads
C6 too whimpy? Try using a composite propellant D10-7 for some serious power - but beef up the recovery system!

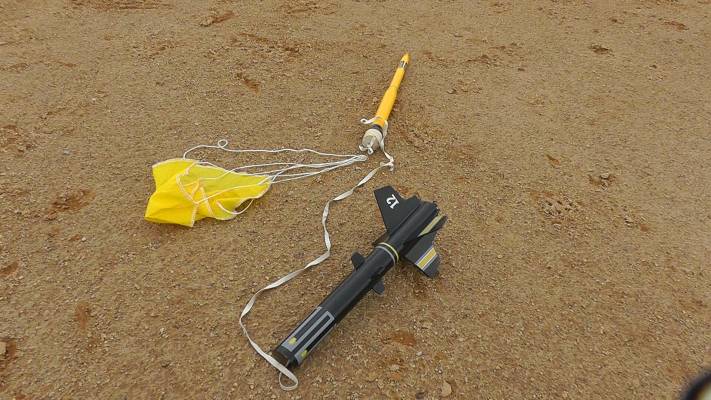

I carried a sonic locator beacon on this super-powered flight, and where does it land? On the ballfield. Murphy.
Vector Force launches on a C6-3
Vector Force recovering with a 12" Nylon Parachute
