Asp IV Rocksim Design File

• Manufacturer: Scratch

Comments: Based on ROTW photo

Designer: Mike McBurnett

Download scratch_asp_iv_sport_scale.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

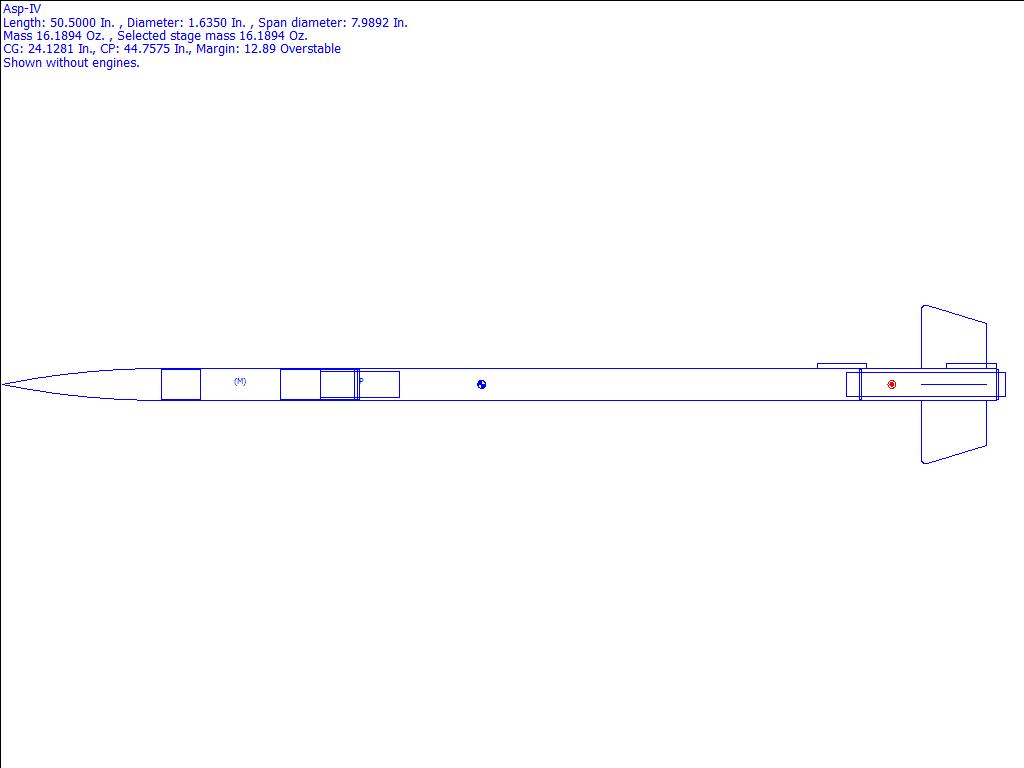

Kit Name: Scratch - Asp IV {Scratch}

CG: 24.1281 inches from front
CP: 44.7575 inches from front
Margin: 12.89 Overstable

Parts Breakdown

• Ana Cana Puna Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• LOC Precision TC-1.52 Ring
• LOC Precision LOC BP-1.52 Ring
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• LOC Precision LOC FCR-1.52-1.14 Ring
• LOC Precision LOC FCR-1.52-1.14 Ring
• Asp IV Freeform Fin Set Freeform Fin Set
• Custom 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (24.00 in)
• LOC LOC LL25 Launch Lug
• LOC LOC LL25 Launch Lug
