Advanced Rocketry Corporation - 1318 PSR
Contributed by Chan Stevens  Brief: Construction: The components were very carefully packed with plenty of bubble wrap. I thought it was especially neat that the smaller 13mm nose cones were packed using recovery wadding, which comes in handy when you're dealing with 5 recovery deployments per flight. Parts list includes:
 The balsa cones and transition were all very good quality. The tubes were typical quality white cardboard with minor seams that needed to be filled. The instructions for this are generally well written and most steps have supporting photos. I can't stress enough that this is definitely geared for the advanced builder. Even though the instructions say fairly specifically what to do, you really need to have an understanding of how this all works as you go along in order to pull this off well. I managed to wrap up the construction over a weekend, spending about 4-5 hours each day, distracted by the occasional load of laundry, dog walking, etc. One minor beef with the instructions is that the photo quality was a bit grainy and making a color photo Abode Acrobat .PDF version of the manual online would be a nice plus. Construction starts out with the booster interlock assembly. I'm not going
to bog this down with too many details (although the instructions are 67 steps
over 12 pages), and will stick to mainly strategy and tips. The 4 boosters are
designed to lock together forming a square. This is accomplished through a set
of interlocking tabs on the aft end, which is constructed out of 2 balsa rails
and 2 balsa tabs per booster. You have to be very careful in the
I normally use yellow glue for balsa bonds, but in this case I switched to thin and/or medium CA. The main reason is that the thin CA strengthens the tiny, fragile balsa and I was able to avoid the relatively large fillets from wood glue. Oversized fillets can kill you in this area. One warning on the tab construction and bonding: pay careful attention to the photos. The instructions use phrases like "left rail", which can be a little confusing when you're trying to figure out which side of a circle is left and the rails are 90 degrees apart, not 180, so left or right is a key distinction.
The area where the fins and booster run together is reinforced with thin CA and sanded back down. This is a great construction tip.
The booster lower body tube assembly is easily about three-fourths of the work on this rocket. After completing that, the rest is fairly simple. The 18-34mm balsa transition is glued into the lower tube and the launch lug is bonded to the upper tube. After carefully aligning the upper launch lug with the placement of the lower lug, which has to be sandwiched almost impossibly askew of a fin line between the boosters, the upper body tube is glued in place. The payload section is standard bulkhead tube-friction fit nose cone stuff. One thing I thought a bit anal-retentive but possibly a very cool idea (although I'm very anal retentive myself) was that the lug on the upper body has a standoff made from a single layer of cardstock, which was not included in the kit. I don't see any fit/functional use for the standoff and can only guess it is there to reduce the chance of a launch rod chipping paint during takeoff. If this is the case, then that is a cool innovation that I'll have to start incorporating in other projects. Construction wraps up with installation of the thrust rings and recovery devices. I wasn't paying close attention to what I was doing. I actually followed the instructions without applying any thought and made a minor goof in the booster recovery. The instructions say at the start of this section to pull the 13mm nose cones, screw eyes, thrust rings, Kevlar®, and 1/8" shock cord material. They then say to cut the Kevlar® cord and streamer material into 4 equal lengths. What should be pulled is the streamer material and I wound up cutting the elastic into 4 parts. It's actually supposed to be one long piece later used in the payload recovery. No big deal as I've got piles of extra shock cord to work with... Finishing:
In order to make sure everything separated cleanly, I also topped off the finish with a nice coat of automotive wax. This gives it the gloss of a clearcoat but also reduced drag and creates a slick finish. Construction Rating: 4 out of 5 Flight: Our 12V system managed to light 3 of the 4 A10's and the B6. The flight was excellent and the dead pod did not adversely affect the stability or flight path. The A10's seemed to stick just a second or two after burnout, but did eventually break free while the B6 was still burning. The pods then popped the streamers out while the B6 main tube was coasting. The B6 popped a bit after apogee, deploying the 12" silver mylar chute. Recovery: Flight Rating: 4 out of 5 Summary: PROs: Complex flight profile is a real challenge and great experience. Plenty of engineering work went into this one. CONs: Complex flight profile is time consuming to prep. Overall Rating: 4 out of 5 Flight Log
What You Can Do
|
|||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||
measurements during this process in order to get a fit that will
work. As an example of how exacting the tolerances are, during the early stages
of construction you make small 2 layer patches of electrical (friction) tape to
place on the main body tube, simulating the paint thickness, so that the
boosters don't lock on too tightly.
I'm not sure if this is me or a minor kit problem, but I found
that the wraps for tube marking were a little too big and I had to shrink them
down a bit in order to get the lines precisely right. The 13mm wrap was about
4mm too long and the 18mm wrap was about 6mm too long.

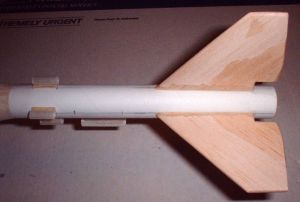

Once you've built the basic 4-booster framework and test fit it
to the lower body tube, you then attach the 4 fins. Fin alignment is pretty
critical. Not only do they need to be parallel to the body tube, but they have
to be darned near exactly 90 degrees apart. If you're off just a hair on the
lines, like from an oversized marking wrap, you won't be able to fit the
booster assembly over the fins. The fins are notched to accommodate the
boosters' interlocking tabs, and in my case I had to open up this notch just a
bit.

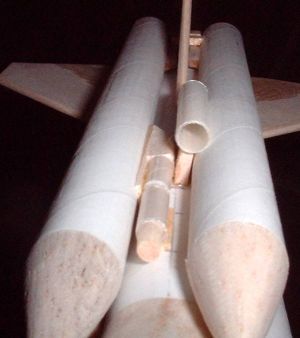

The boosters are held in place at the forward end by a pair of
launch lugs locking in over wood dowels. This wasn't quite as complex as the
interlocking tabs, although it does call for gluing a 3/16" square balsa
piece onto a 1/32" balsa base, then sanding the block down to a sharply
rounded taper. I can't for the life of me think of a functional purpose to this
other than possibly a tiny reduction in drag. The instructions also call out
for marking booster tubes for placement of the lug/base assemblies. These are
actually attached by fitting the boosters over the body tube and marking off
placement lines is not necessary. I got the sense in this section that they had
tried 2 or 3 different construction approaches and forgot to edit out some of
the "old" approaches along the way.
