Rich DeAngelis's Big Bertha
Manufacturer:Estes
Diameter:1.6400 inches
Length:24.0000 inches
Skill Level:1
Style:Sport

The Big Bertha: Is a very old model built in the 1970s by my brother. Very popular model, you probably have this or one of its many derivatives yourself.  This rocket is the classic '70s kit. It is big, fat, slow flier with a retro look. This one isn't retro-"looking" though; it's the real retro thing.  It is painted in the original mid-70’s catalog scheme, but with a lighter - more 50's style - cream yellow. I would prefer the newer all-black look Estes is showing now, or maybe some red/white/blue patriotic scheme.

It sure eats a lot of wadding with that big BT60 tube! I installed a Nomex cloth so it will never need wadding again, and a nylon cloth parachute. I have modified this rocket with my "Iris" altimeter bay, which adds another 2.88 inches in length and 14.6 grams of weight. (Iris is named after the Greek god of the rainbow. She is a messenger of the gods, linking the gods with humanity.) This model always seemed to weathercock a lot for me, I hoped that the extra nose-weight of the newly added payload would have helped a bit, but it just slowed it down some more, the Nomex and heavier Nylon cloth didn't help either, I just made Big Bertha into Big & Heavy Bertha.  With a C6 motor his rocket has flown higher than the the Saturn V Apollo spacecraft, and the famous Spire of Dublin. But with the extra weight and drag I added, this slow flier seems to always be sensitive to the wind.

A late ejection on a B6-4 (I should have used a -2), damaged the engine mount in a high-speed impact with the mud, so this was re-built with a larger motor mount so she can fly again with D12 power. (The original stuffer-tube was removed.) The added impulse should get her up in a hurry and the longer burn time should produce some really high flights, I would expect more than 600 feet at least, possibly 7 or 8 big ones. We will see...

...we did see. It has now flown higher than the Two Liberty Place Building in Philly, the US Steel Tower in Pittsburg, and the Chase Tower in Indianapolis IN.

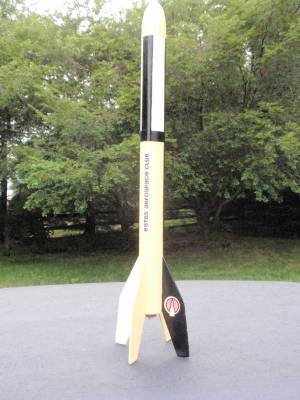

Big Bertha

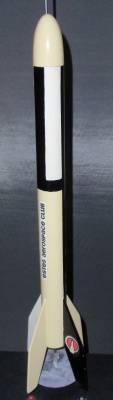

Big Bertha

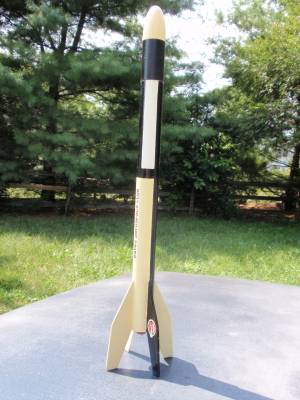

Big Bertha with Iris Payload

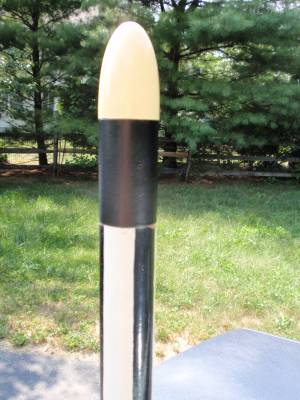

Iris Payload on Big Bertha

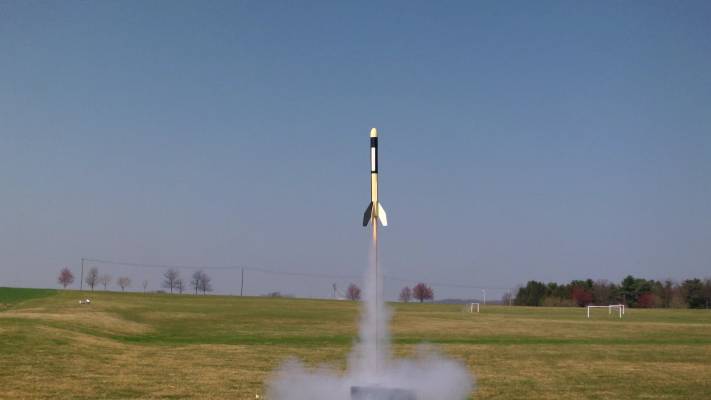

Bertha takes to the sky on a D12 motor

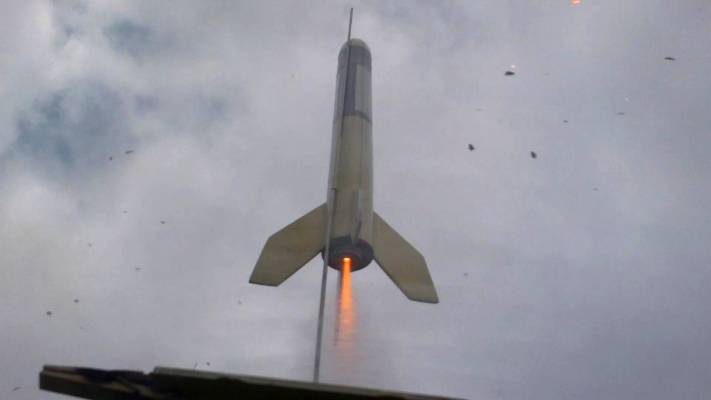

Bertha with Iris payload takes to the sky on a C11-5

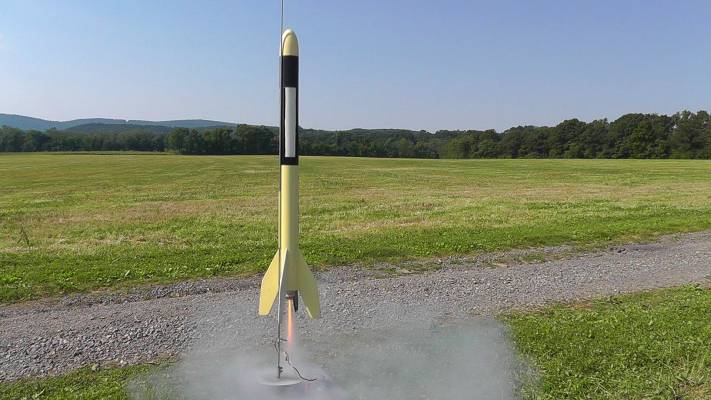

Big Bertha with Iris payload leaves on a C6-5

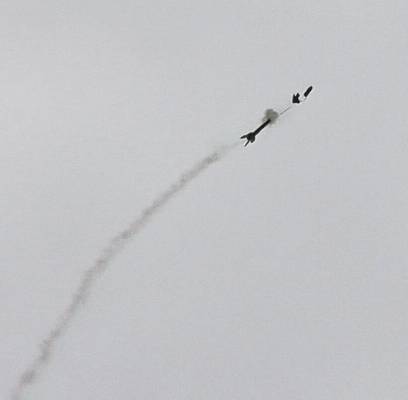

Bertha at the instant after deployment...where is the parachute? (Still wrapped in its Nomex blanket)

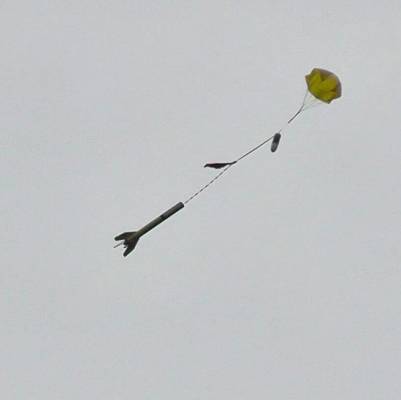

Big Bertha has another successful deployment. Top-Flight Nylon parachutes rock!
