Estes - Pathfinder (1997) [1988-1990]

Manufacturer:Estes
Construction Rating:
Flight Rating:
Overall Rating:

Contributed by Brian Ray

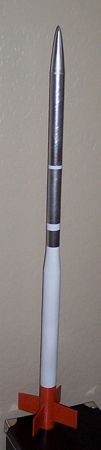

(OOP) Estes Pathfinder

Brief:
This is a clone of the OOP Estes kit. While it is a fairly standard model, it has some very nice qualities to it including its size and its transition.

Construction:
My primary components were:

  • 18" BT-60 body tube
  • 18" BT-55 body tube
  • PNC-55
  • BT-60 to BT-55 transition
  • 4 Hand-traced and cut balsa fins
  • 2.75" 24mm engine tube
  • BT-60 to BT-50 cardboard centering rings, scratch-made
  • Elastic shock cord
  • Hartle Engineering 12" parachute

This was a relatively simple and straightforward build. All of the construction was done with Elmer's wood glue.

Finishing:
After construction, I primed the rocket with Wal-Mart primer (all the paint used on this one was from Wal-Mart), sanding and priming several times. I painted the entire rocket white, masked and painted the fin section orange, then masked again to pain the top portion silver. I really like the paint scheme and look forward to adding the decals that will be created with Avery labels.

Construction Rating: 4 out of 5

Flight:
I have flown this rocket once on a D12-5. The flight was great! – nice and straight.

Flight Rating: 5 out of 5

Summary:
This was an enjoyable build for me! – not too challenging and yet fun. While some may view it as not much more than a 4FNC, I think it's a great rocket and look forward to flying it often.

Overall Rating: 4 out of 5

    Flight Log

    DateRocket NameMotor(s)AltitudeNotes
    2000-10-28David Fergus's Estes PathfinderD12-5- maiden flight unpainted
    2001-10-20Bob Bernatchez's Estes PathfinderD9-4- Lots of bonus delay on this reload. Good thing I flew it on THIS rocket! Model setteled into a...
    2001-11-18Bob Bernatchez's Estes PathfinderD12-7- Another perfect flight!
    2002-02-23Richard Valenti's Estes PathfinderD12-5- Good flight as usual. About out of sight. Use to get wind conditions for bigger rockets. Down on...
    2002-04-20Bob Bernatchez's Estes PathfinderD15-7- Parachute for bottom half did not deploy, resulting in a core sample. Top section recovered,...
    2002-05-18David Fergus's Estes PathfinderD12-5- painted now, good flight. Sarah's first D engine rocket.
    2002-09-22Richard Valenti's Estes PathfinderD12-7- Reloaded and flown again because the first flight was great. Up to about 600ft and down on the...
    2002-09-22Richard Valenti's Estes PathfinderD12-5- Usual great flight. Used a streamer to recover. Up to about 700ft and down about 200ft out....
    2002-11-03Richard Valenti's Estes PathfinderD12-7- Great motor for this rocket.Up to about 800ft and popped chute.Motor puts out some nice smoke and...
    2002-12-15Richard Valenti's Estes PathfinderE9-8- Nice launch with flame.Spun up to about 800 and popped streamer.Streamer tangled but fully...
    2003-02-15Richard Valenti's Estes PathfinderE9-8- Fins neon orange and top still in primer.Had to fly it.Orange paint worked great.Seen all the way...
    2003-03-08Richard Valenti's Estes PathfinderD12-7- Straight up as usual. Up to about 800 ft. Down on streamer just great. Walked about 150 for pick...
    2003-03-23Richard Valenti's Estes PathfinderC11-3- Only engine in the box for this one.Up to only about 500 real slow.Popped streamer just about...
    2003-07-04Richard Valenti's Estes PathfinderE9-8- Way up there.Painted black helped with sighting in the blue sky.Came down on a 12 foot streamer.No...
    2003-07-13Bob Bernatchez's Estes PathfinderC11-7- Another poor choice of delay. Model recovered without damage.
    2003-07-17Richard Valenti's Estes PathfinderE9-8- Just about out of sight.Used tracking smoke to locate in sky. Est 1000 ft up.Down on streamer...
    2003-09-06Vinnie Valenti's Estes PathfinderE9-6- Almost caught just inches away.
    2003-09-21Vinnie Valenti's Estes PathfinderE9-8- It went way down range to the west side of the field.
    2004-05-16Bob Bernatchez's Estes PathfinderD12-5- Great flight!
    2004-11-20Bob Bernatchez's Estes PathfinderD15-7-
    2004-12-19Bob Bernatchez's Estes PathfinderD15-7- This is a good motor for this model.
    2005-01-16Bob Bernatchez's Estes PathfinderD15-7- I'm really getting to like these D15's. They're nise motors for Estes models, especially on windy...
    2005-03-20Bob Bernatchez's Estes PathfinderD12-7-
    2005-06-25Bob Bernatchez's Estes PathfinderD12-5- Great flight at dusk.
    2005-06-26Bob Bernatchez's Estes PathfinderD12-5- Good flight.
    2005-12-18Bob Bernatchez's Estes PathfinderD12-5- Great Flight!
    2006-02-19Bob Bernatchez's Estes PathfinderD12-7- Maybe should stick with a 5 for this one.
    2006-05-20Bob Bernatchez's Estes PathfinderD12-5- Great flight.
    2006-11-19Bob Bernatchez's Estes PathfinderD12-5- Great flight.
    2006-12-16Bob Bernatchez's Estes PathfinderD12-5- Great Flight.
    2007-01-20Bob Bernatchez's Estes PathfinderD12-5-
    2007-02-17Bob Bernatchez's Estes PathfinderD12-5-
    2007-03-17Bob Bernatchez's Estes PathfinderD12-5- Good flight.
    2007-04-14Bob Bernatchez's Estes PathfinderD12-5-
    2007-11-17Bob Bernatchez's Estes PathfinderD12-5-
    2008-02-17Bob Bernatchez's Estes PathfinderD12-5- Good flight.
    2008-12-20Bob Bernatchez's Estes PathfinderD12-5- Great flight
    2009-01-31Tim Bearden's Estes PathfinderD12-5- Perfect maiden flight, both parts came down within 30 feet of pad.
    2009-03-21Bob Bernatchez's Estes PathfinderD12-5- Great flight.
    2009-03-28Tim Bearden's Estes PathfinderD12-7-
    2009-03-28 Tim Bearden's Estes PathfinderD12-7-
    2009-07-25Brian Ray's Estes PathfinderD12-5- Great flight -- straight and true
    2009-11-21Bob Bernatchez's Estes PathfinderD12-5- Great flight
    2009-11-27Brian Ray's Estes PathfinderD12-5-
    2009-12-12Brian Ray's Estes PathfinderD12-5-
    2010-01-16Bob Bernatchez's Estes PathfinderD12-5-
    2010-02-20Bob Bernatchez's Estes PathfinderD12-5- Great flight.
    2010-03-20Bob Bernatchez's Estes PathfinderD12-5- Good flight.
    2010-04-18Bob Bernatchez's Estes PathfinderD12-5- Switched back to a small chute for the upper section, less potential for damage.
    2010-06-19Bob Bernatchez's Estes PathfinderD12-5- Good flight
    2010-12-19Bob Bernatchez's Estes PathfinderD12-5- Great flight.
    2011-02-19Bob Bernatchez's Estes PathfinderD12-5- Good flight
    2011-03-20Bob Bernatchez's Estes PathfinderD12-5- Good flight
    2011-12-18Bob Bernatchez's Estes PathfinderD12-5-
    2012-01-01 Bob Bernatchez's Estes PathfinderD12-5-
    2012-01-28Bob Bernatchez's Estes PathfinderD15-7-
