Ranger Rocksim Design File

Designer: Estes

Download oop_estes_astronranger.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

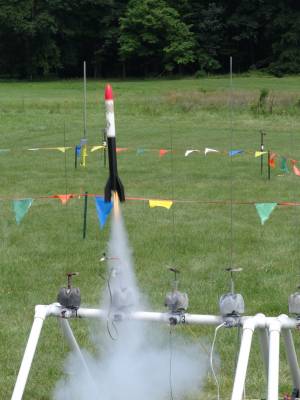

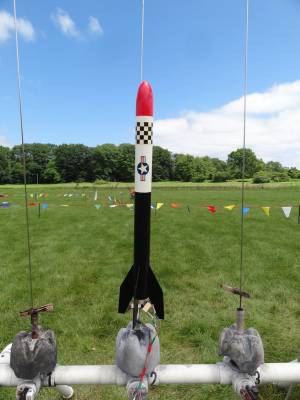

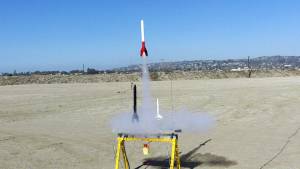

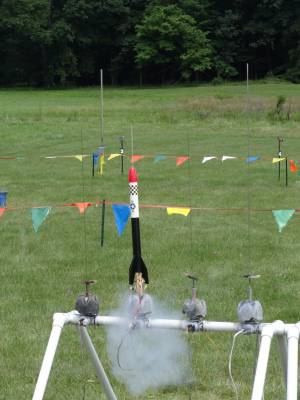

Kit Name: Estes - Ranger (6) [1962-1971]

CG: 11.4905 inches from front
CP: 17.8342 inches from front
Margin: 3.88 Overstable

Parts Breakdown

• Custom Elliptical Nose Cone
• Estes Paper Body Tube (1.6370 in)
• Custom Balsa Ring (0.0000 - 1.5950 in)
• Estes Paper Body Tube (1.6370 in)
• Custom Polyethylene LDPE Parachute (14.00 in)
• Custom Mass Object
• DIY Eye Hook #4 Mass Object
• Estes Paper Body Tube (0.7360 in)
• Estes Engine hook Standard size Mass Object
• Estes Paper Ring (0.6510 - 0.7100 in)
• Custom Balsa Freeform Fin Set
• Estes Paper Launch Lug (0.1880 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Engine hook Standard size Mass Object
• Estes Paper Ring (0.6510 - 0.7100 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Engine hook Standard size Mass Object
• Estes Paper Ring (0.6510 - 0.7100 in)
