| Construction Rating: |   | | Flight Rating: | | | Overall Rating: | |
Contributed by Dick Stafford Brief:

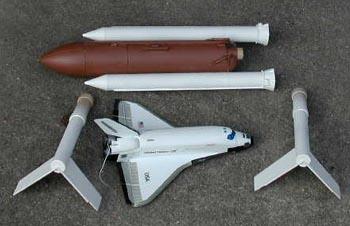

 This is a review of the OOP Estes Master's Series Space Shuttle, EST# 1284. It is a 1/162 scale replica of the Space Shuttle and includes both Orbiter and booster sections. These sections are connected at launch, boost on a single C5-3 or C6-3 engine, and separate when the 'main engine' ejects. The Orbiter uses glide recovery while the booster uses a parachute. For flight, there are removable fin units that mount in the SRBs. For display, plastic nozzles are provided.
Construction:
The Space Shuttle came packaged like a typical Estes kit (plastic bags, etc). This is definitely a skill-level-4 kit with 16 pages of detailed instructions containing 53 steps. It claims to require 4 types of glue and 6 colors of paint. The parts list includes 27 line items including the chute, decals, etc. The balsa fins, cardboard body wraps/detailing, and vacuum-molded Orbiter components are all die cut. The die cut plastic components made the Orbiter assembly a lot easier, as I never seem to get a good fit when I have to cut them with a knife.
 I built the kit stock, down to the elastic shock cord. I figured it was good enough for several flights, and I probably will not fly it too often. I substituted Titebond for the white glue, and since I didn't want to go out and buy 3 types of glue that I normally don't use (contact cement, plastic cement, and liquid plastic cement), I used CA (medium and thick) instead. I assembled the entire booster (main tank/SRBs) this way and it worked fine. Later, when I got to the Orbiter, which is almost all plastic, I broke down and got some liquid plastic cement. I want to point out a general rule in building models - one that I don't seem to follow. That is, read ALL the instructions before you start. I didn't pay attention and used the elastic string required for the adjustment of the Orbiter's elevons in another spot. DUH. I did, however, find a suitable replacement when building the Orbiter. My feeble mind was confused by the fact that the chute came pre-assembled, and the instructions called for a piece of twine from the chute. I followed the instructions pretty much as is, but I did skip ahead at times to keep busy while parts dried. I found one fin was broken out of the bag; however, this was easily fixed with some glue and tissue. I stopped at the point that the main tank, SRBs, and removable fin units were complete. At this point, I decided that I would separately paint each section. After these sections are assembled, it would be very difficult to paint them different colors. The fit of the plastic Orbiter parts was not perfect, but not too bad. The first step in trimming the Orbiter glider is balancing it and adjusting the nose weight.  The kit provides two weights. I used one weight and some clay instead of cutting the second one up. Next, you adjust the elevons with a string that is run through the center engine nozzle in the rear. This string pulls on a plastic arm on the elevon assembly, while the elastic string mentioned earlier maintains tension. After quite a bit of adjustment, the Orbiter still seems to glide like a brick (kind of like the real thing?). If I was confident in my detailed model building abilities, I would give a construction rating of 2.5, but will give it the benefit of the doubt and bump it up a point.
Finishing:

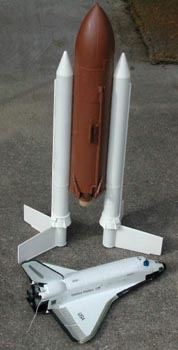

I decided to use the current Shuttle paint scheme, with a brown main tank and white boosters. As I mentioned above, these were painted prior to their final assembly. I used white spray paint and the rest was brush-on. I didn't want to buy multiple spray paints, nor am I that skilled in masking small details. I even mixed my own light gray-green for the tip of the Orbiter's nose and the leading edge of the wings. The decals are the water-slide variety. They went on fine, but some of the smaller ones literally blew away when I sprayed the final clear coat. The end result, like many of my finish jobs, looks good from a distance.
Construction Rating: 3 out of 5
Flight:
The kit flies on C5-3 and C6-3 engines only. I chose a C6-3 because that is what I had available. The winds were blowing between 5-10 mph (my guess) when I launched. The boost was slow (read that realistic) and there was some wobble and weathercocking.
 Recovery:
The recovery system is typical Estes with an elastic shock cord and a plastic chute. Ejection appeared to occur just before apogee and the Booster separated, just as it was supposed to. It turned with the wind and came down at a fairly steep angle, again, just like the real thing. It landed nicely without damage. The one problem was singeing on the elastic shock cord, which is no big surprise. I will have to replace it before the next flight - should have done it at the start! I rate the flight/recovery at 5/5, and take off ½ point for the elastic shock cord.
Flight Rating: 5 out of 5
Summary:
PROs 1. Great looking scale model. 2. Relatively easy to build, considering the number of components. 3. Realistic looking boost and Orbiter recovery. 4. Neat rocket!
CONs 1. Fin stock was broken out of the package. 2. Some steps are hard to understand and require looking at all the finishing diagrams to understand what is intended 3. The fit of the Orbiter parts is so-so 4. Junky recovery components - typical Estes.
Overall Rating: 4 out of 5 Flight Log| Date | Rocket Name | Motor(s) | Altitude | Notes |
|---|
| 1996-08-01 | Dana Ryman's Estes Space Shuttle | C5-3 | - | Awesome! Picture perfect launch, deployment, and shuttle glided safely back. Did it again the next... | | 1999-09-11 | David Fergus's Estes Space Shuttle | C5-3 | - | heeled over 50 off ground, flew horiz. for about 200ft and ejected just before impact, minor... | | 2001-02-18 | Kenneth Johnson's Estes Space Shuttle | C6-3 | - | Victim of a dirty launch rod! Never left the pad under thrust, but when ejection occurred, it flew... | | 2001-04-13 | David Fergus's Estes Space Shuttle | C5-3 | - | good straight flight to about 250 ft; orbitor glide was kind of fluttery due to stalls, aileron... | | 2001-05-12 | David Fergus's Estes Space Shuttle | C5-3 | - | another good flight, fluttery glide. good recovery of booster on 18 plastic Estes chute | | 2001-07-28 | David Fergus's Estes Space Shuttle | C5-3 | - | | | 2002-02-09 | Dick Stafford's Estes Space Shuttle | C6-3 | - | Boost was slow and a lttle wobbly (due to the wind?) However, the ejection and recovery was fine.... | | 2002-07-13 | Dick Stafford's Estes Space Shuttle | C6-3 | - | low arcing flight even though the wind was very light, parachute didn't deploy and the Shuttle had... | | 2003-08-23 | Tim Doll's Estes Space Shuttle | D13-4 | 400 feet | Great Flight. It took off arrow straight and flew to an estimated 400 feet. The shuttle 'trim' was... | | 2003-10-25 | Glenn Weiss's Estes Space Shuttle | C6-3 | - | Flew up, heeled over and flew sideways for about 200 ft, possibly due to launch rod angle.... | | 2003-10-26 | Tim Doll's Estes Space Shuttle | D13-4 | - | Nice flight - slight weathercock off the pad. The shuttle glides like a brick though. | | 2004-04-04 | Tim Doll's Estes Space Shuttle | D13-4 | - | Nice flight, too bad the shuttle still glides like a brick. | | 2004-10-09 | Dick Stafford's Estes Space Shuttle | C6-3 | - | low arcing flight; a C6-3 is barely enough for this model | | 2004-11-21 | Kenneth Benjaminsson's Estes Space Shuttle | C6-3 | - | a little wobble during powered flight, but not bad at all.Glider flew nicely in wide turns, and... | | 2005-07-30 | Glenn Weiss's Estes Space Shuttle | C6-3 | - | Second flight of Columbia was an improvement but not great. Stack arced over and ejected maybe 60... | | 2006-04-18 | Matt Gillard's Estes Space Shuttle | C6-3 | - | Slow boost slightly backwards, core ejection just after shuttle tipped backwards at apogee,... | | 2006-04-18 | Matt Gillard's Estes Space Shuttle | C6-3 | - | Slow straight boost, core ejection just after shuttle tipped backwards at apogee, shuttle back... | | 2006-04-20 | Matt Gillard's Estes Space Shuttle | C6-3 | - | Slight off vertical boost, late core ejection, gave a short, but steady glide. | | 2006-06-08 | Matt Gillard's Estes Space Shuttle | C6-3 | - | arched flight, ejection of core was with the shuttle pointed down. Shuttled slammed into earth... | | 2006-07-29 | Glenn Weiss's Estes Space Shuttle | D21-4 | - | A disaster, old motor malfunctioned, popping the orbiter off the stack before fully igniting,... | | 2006-11-25 | Glenn Weiss's Estes Space Shuttle | C6-3 | - | Finally a good flight for Columbia! Stack did arc over, but it was in perfect position at... | | 2007-04-02 | Matt Gillard's Estes Space Shuttle | C6-3 | - | perfect flight, core ejection at horizontal gave the shuttle one of its best flights, landed... | | 2007-04-02 | Matt Gillard's Estes Space Shuttle | C6-3 | - | arched on boost, hit the ground at core ejection- terrible flight, wing was a big problem -no... | | 2007-05-06 | Matt Gillard's Estes Space Shuttle | C6-3 | - | near perfect flight, shuttle completed 2 and a half circuits before belly landing | | 2007-05-11 | Matt Gillard's Estes Space Shuttle | C6-3 | - | was pointing down at core eject. shuttle recovered to a horizontal glide with slight stalls but... | | 2007-05-14 | Matt Gillard's Estes Space Shuttle | C6-3 | - | straight boost, gave a good glide, with a harder landing than normal | | 2007-05-14 | Matt Gillard's Estes Space Shuttle | C6-3 | - | arched boost hit the ground during coast phase -no damage | | 2007-05-14 | Matt Gillard's Estes Space Shuttle | C6-3 | - | arched boost in the opposite direction, again on the grould on ejection, motor retention clip bent. | | 2007-06-16 | Dick Stafford's Estes Space Shuttle | C6-3 | - | No 'chute, minor tube crunch, motor mount damage. I could probably do surgery and fix it, but I... | | 2007-06-30 | Glenn Weiss's Estes Space Shuttle | C6-3 | - | Our best flight yet with this model! Orbiter flew decently but was blown around a little by the... | | 2007-10-14 | Matt Gillard's Estes Space Shuttle | C6-3 | - | arched boost -again, time to retire! | | 2007-11-04 | Matt Gillard's Estes Space Shuttle | C6-3 | - | arched boost, ejected a few feet of the ground, shuttle floated down -shockingly underpowered. | | 2009-08-16 | Glenn Weiss's Estes Space Shuttle | C6-3 | - | Decent flight. Orbiter did not glide that well but landed ok. Chute did not fully deploy from... | | 2010-07-31 | Erik Kallstrom's Estes Space Shuttle | D12-3 | - | nice flight 150-200 ft, works much better on a D12 than a C-6 | | 2011-08-20 | Glenn Weiss's Estes Space Shuttle | C6-3 | - | Good glide from orbiter. Booster suffered motor mount damage after cord separation, needs repair |
