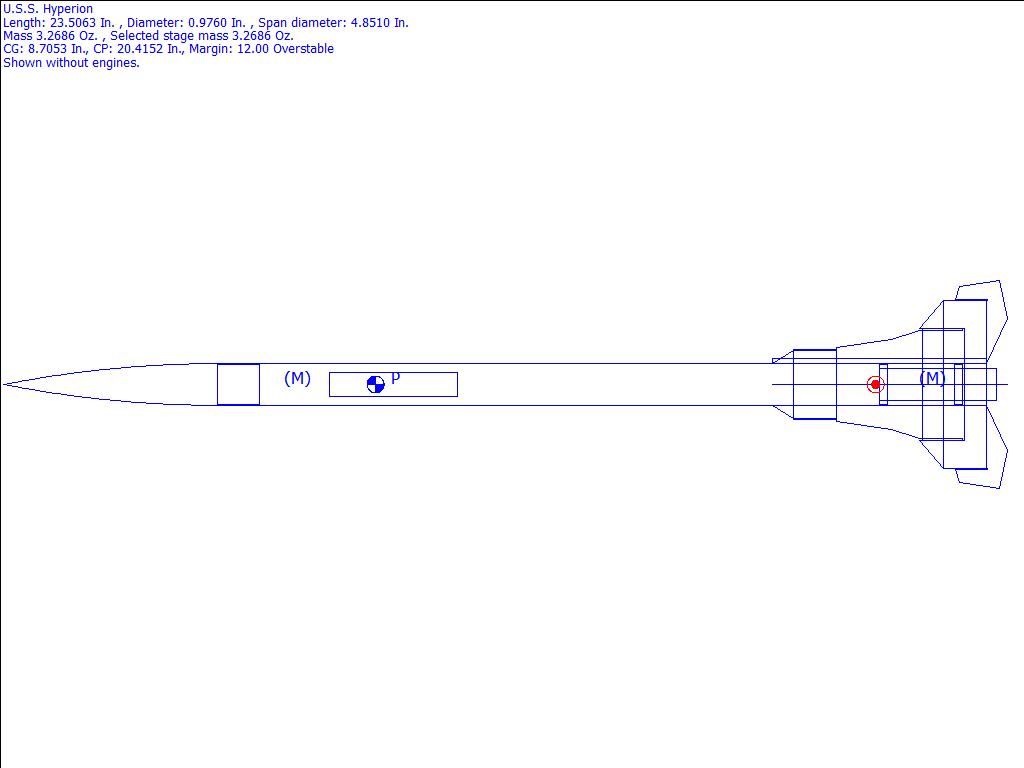

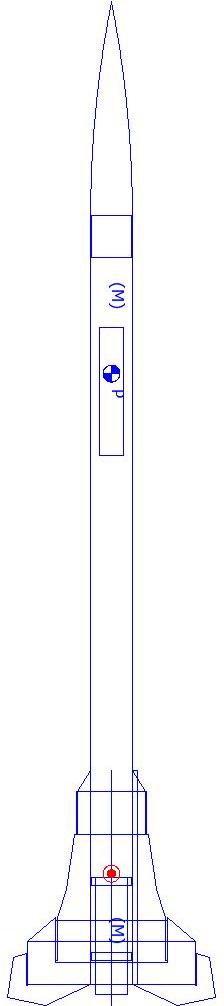

U.S.S. Hyperion Rocksim Design File

Comments: control room windows ("bulbous shapes") on the nose not included (technically the tube fins are not supported either)

Designer: Estes Industries, Inc., (data entered by Charles Keller based on Kit # K-1383 instructions)

Download oop_estes_uss_hyperion_kit_1383.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

CG: 8.7053 inches from front
CP: 20.4152 inches from front
Margin: 12.00 Overstable

Parts Breakdown

• Estes Ogive Nose Cone
• Estes Paper Body Tube (0.9760 in)
• Estes Paper Ring (0.7360 - 0.9500 in)
• Estes Paper Ring (0.7360 - 0.9500 in)
• Estes Paper Body Tube (3.9380 in)
• Estes Paper Body Tube (2.6000 in)
• Custom Balsa Freeform Fin Set
• Estes Paper Body Tube (0.7360 in)
• Estes Engine hook Standard size Mass Object
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes Paper Launch Lug (0.1250 in)
• Estes Paper Body Tube (1.6370 in)
