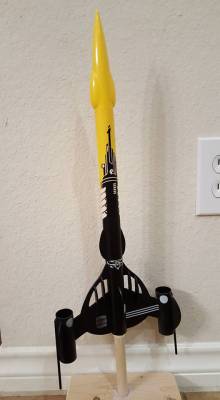

Estes - Alien Invader Rocksim Design File

• Family: Estes : Alien Invader
• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 2
• Style: Futuristic/Exotic

Download Estes_Alien_Invader.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Alien Invader {Kit} (3003) [2010-]
Diameter: 0.9800 inches
Length: 20.2000 inches
Style: Futuristic/Exotic

CG: 11.9004 inches from front
CP: 14.9048 inches from front
Margin: 3.08 Overstable

Parts Breakdown

• Estes - Alien Invader Haack Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.75 in]
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• External Pod
• Estes - Alien Invader Freeform F Freeform Fin Set
• External Pod
• Estes - Alien Invader Freeform F Freeform Fin Set
• Freeform Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• External Pod
• Estes - Alien Invader Freeform F Freeform Fin Set
• External Pod
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• Estes - Alien Invader Freeform F Freeform Fin Set
• Apogee 13031 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.62 in]
• Estes Engine hook Standard size Mass Object
• Estes 30162-2 Ring
• Estes ESTES 2321 Launch Lug
• Estes ESTES 2321 Launch Lug
• Estes Mass Object
• Estes Mass Object
