Designs >> Rocksim Library >>

All Rocksim Designs (1381 of 3219)Tag - Manufacturer:EstesTag - Motor Size:13 mmTag - Power:Low-PowerTag - Recovery:ParachuteTag - Scale:Honest JohnTag - Skill Level:1Tag - Style:Scale

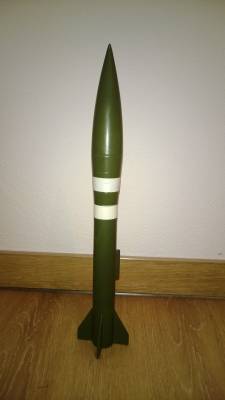

Estes - Mini Honest John Rocksim Design File

• Manufacturer: Estes
• Motor Size: 13 mm
• Power: Low-Power
• Recovery: Parachute
• Scale: Honest John
• Skill Level: 1
• Style: Scale

Comments: - Overall Mass Override selected for acutal weight and CG NOTE: the stability is MARGINAL once an engine is loaded. This Rocksim file is the stock kit constructed as per instructions. There is a previous version of this model identical in size and dimension - except it was released with an 18mm motor mount - that model shows clay in the nose cone, which will move the CG forward, which is what I will recommend adding.

Designer: Estes Mini Honest John (13mm motor mount) #2446 Rocksim v8 By Doug Szczepanski Sr.

Download Mini Honest John - est2446.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Mini Honest John {Kit} (2446)
Diameter: 0.9800 inches
Length: 11.7500 inches
Style: Scale

CG: 7.2500 inches from front
CP: 8.9510 inches from front
Margin: 1.35

Parts Breakdown

• Estes - Mini Honest John Ogive Nose Cone
• LOC/Precision Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• Estes - Mini Honest John Freefor Freeform Fin Set
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes 038367 1/8" Rubber Shock Cord Mass Object
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.97 in]
• Custom Ring
• LOC Precision Ring
• LOC Precision Ring
• Estes - Mini Honest John Freefor Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.25 in]
