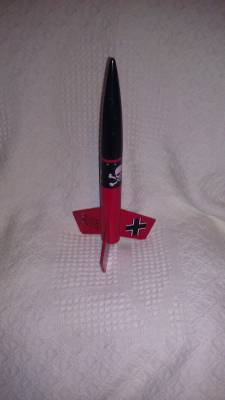

Mini Max Rocksim Design File

• Manufacturer: Estes
• Recovery: Streamer
• Skill Level: 1
• Style: Sport

Comments: Based upon Estes instruction sheet @ http://www.estesrockets.com/media/instructions/002445_MINI_MAX.pdf and Morgan Ash's build 10/10.

Designer: Estes

Download Estes_MiniMax_2445.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Mini Max {Kit} (002445) [?-?]
Diameter: 0.9800 inches
Length: 9.7500 inches
Style: Sport

CG: 5.8982 inches from front
CP: 8.0365 inches from front
Margin: 2.19

Parts Breakdown

• Estes Mini Max Parabolic Nose Cone
• DIY Eye Hook #4 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.77 in]
• Estes Engine hook Standard size Mass Object
• Estes 30167 Ring
• Estes 30222-4 Ring
• Estes 30118 Ring
• Estes 30118 Ring
• Estes Mini Max Freeform Fin Set Freeform Fin Set
• Estes ESTES 2321 Launch Lug
• Estes 38365 Shock Cord - 12" Mass Object
• Estes Polyethylene LDPE Streamer (0.0010 in)
