Satellite Interceptor Rocksim Design File

Contributed by Bruce Levison

• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 2
• Style: Futuristic/Exotic

Comments: Estes #3027

Designer: Estes

Download satelliteinterceptor3027.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

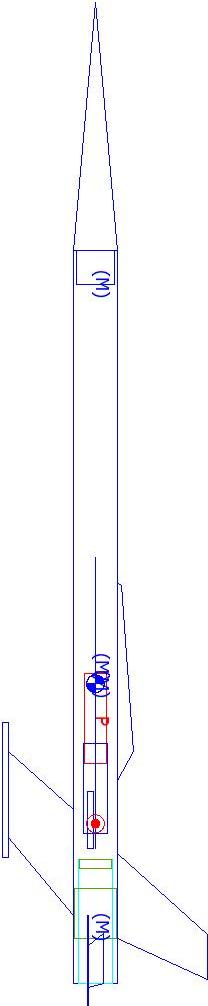

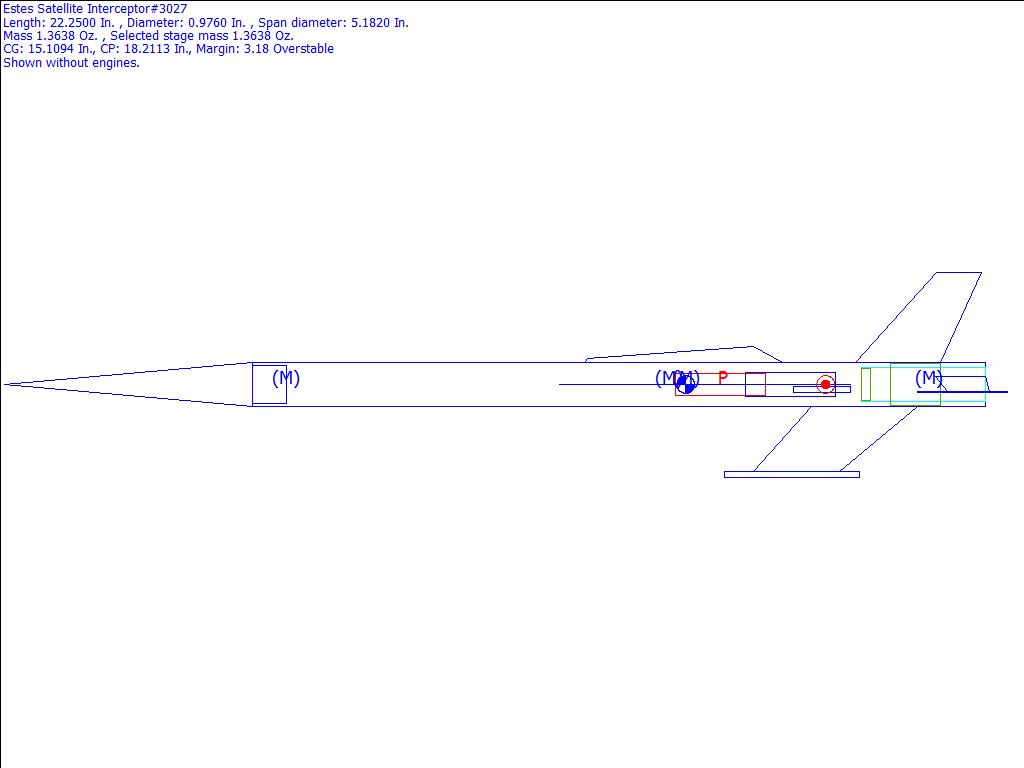

Kit Name: Estes - Satellite Interceptor {Kit} (1296, 3027) [1978-1982]
Diameter: 0.9800 inches
Length: 22.2500 inches
Style: Futuristic/Exotic

CG: 15.1094 inches from front
CP: 18.2113 inches from front
Margin: 3.18 Overstable

Parts Breakdown

• Estes Satellite Interceptor Coni Nose Cone
• Estes 038251 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.25 in]
• Estes Mass Object
• External Pod
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• External Pod
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• External Pod
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• Estes ESTES 2321 Launch Lug
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• External Pod
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Estes Satellite Interceptor Free Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Apogee 13031 Ring
• Estes Engine hook Standard size Mass Object
• Estes Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• External Pod
• Estes Satellite Interceptor Trap Trapezoid Fin Set
• External Pod
• Estes Satellite Interceptor Trap Trapezoid Fin Set
