Raptor Cobra Rocksim Design File

Contributed by Binder Design

• Family: Binder Design : Raptor
• Manufacturer: Binder Design

Download binder_design_raptor_54mm.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

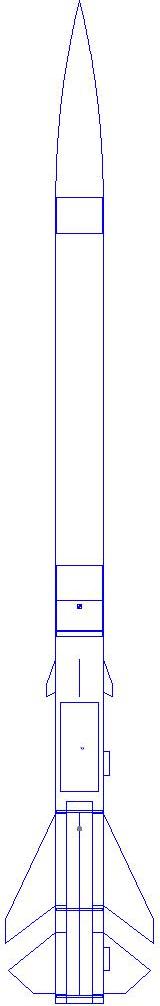

Kit Name: Binder Design - Raptor 54mm {Kit}

CG: 51.2607 inches from front
CP: 69.9987 inches from front
Margin: 4.68 Overstable

Parts Breakdown

• Binder Design Samurai 38mm Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Binder Design CP-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• Binder Design BH-3.9 Ring
• Binder Design LL-50 Launch Lug
• Binder Design LL-50 Launch Lug
• binder_design_raptor_54mm.rkt Tr Trapezoid Fin Set
• binder_design_raptor_54mm.rkt Tr Trapezoid Fin Set
• binder_design_raptor_54mm.rkt Fr Freeform Fin Set
• Binder Design CR-3.9-54mm Ring
• Binder Design CR-3.9-54mm Ring
• Binder Design CR-3.9-54mm Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Binder Design Rip stop nylon Parachute (45.00 in)
