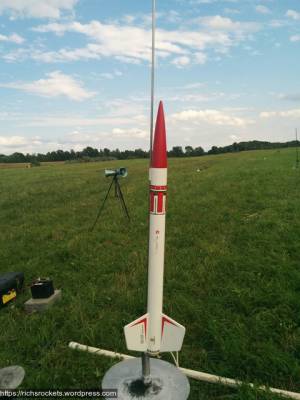

Cherokee D Estes K-47 Rocksim Design File

Contributed by Bruce Levison

Comments: Another Simulation By Bruce S. Levison

Designer: Estes K-47 Demensions from 25 year old assembled kit

Download oop_estes_cherokee_d_v8.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

CG: 12.9103 inches from front
CP: 18.2679 inches from front
Margin: 4.04 Overstable

Parts Breakdown

• Estes Conical Nose Cone
• Custom Mass Object
• Estes Paper Body Tube (1.3250 in)
• Estes Paper Launch Lug (0.1250 in)
• Custom Mass Object
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Cardboard Ring (0.9760 - 1.2830 in)
• Estes Paper Body Tube (0.9760 in)
• Apogee Components Paper Ring (0.7400 - 0.9500 in)
• Estes Engine hook Standard size Mass Object
• Custom Cardboard Ring (0.9760 - 1.2830 in)
• Custom Balsa Freeform Fin Set
• Estes Paper Launch Lug (0.1250 in)
