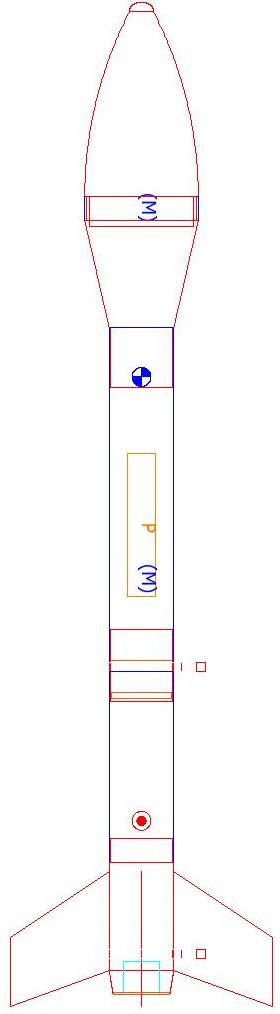

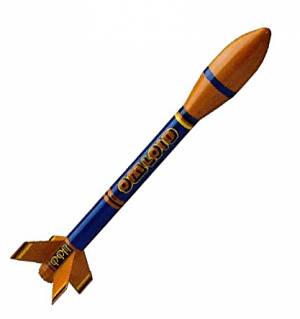

Omloid EST 2078 Rocksim Design File

Contributed by Bruce Levison

Comments: Another Simulation By Bruce S. Levison, NAR #69055

Designer: Designed by Tim Van Milligan,Estes E2X Series EST 2078

Download oop_estes_omloid.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

CG: 7.8381 inches from front
CP: 17.1240 inches from front
Margin: 3.91 Overstable

Parts Breakdown

• Custom Elliptical Nose Cone
• Semroc Ogive Transition
• Custom Paper Body Tube (2.3750 in)
• Estes Mass Object
• Semroc Conical Transition
• Estes Paper Body Tube (1.3500 in)
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes Polystyrene PS Ring (0.0000 - 1.3000 in)
• Estes Mass Object
• Estes Polystyrene PS Body Tube (1.3500 in)
• Estes Polystyrene PS Launch Lug (0.1875 in)
• Estes Polystyrene PS Ring (0.7362 - 1.2638 in)
• Estes Polystyrene PS Ring (1.2200 - 1.3000 in)
• Custom Polystyrene PS Trapezoid Fin Set
• Estes Paper Body Tube (2.3750 in)
• Estes Polystyrene PS Launch Lug (0.1875 in)
• Estes Paper Body Tube (1.3500 in)
• Estes Polystyrene PS Body Tube (1.3500 in)
• Estes Paper Ring (1.2200 - 1.3000 in)
• Custom Polystyrene PS Freeform Fin Set
• Estes Polystyrene PS Launch Lug (0.1875 in)
• Custom Polystyrene PS Trapezoid Fin Set
• Estes Paper Body Tube (2.3750 in)
• Estes Polystyrene PS Launch Lug (0.1875 in)
• Semroc Conical Transition
• Estes Paper Body Tube (0.7360 in)
• Estes Polystyrene PS Ring (0.7360 - 1.1875 in)
