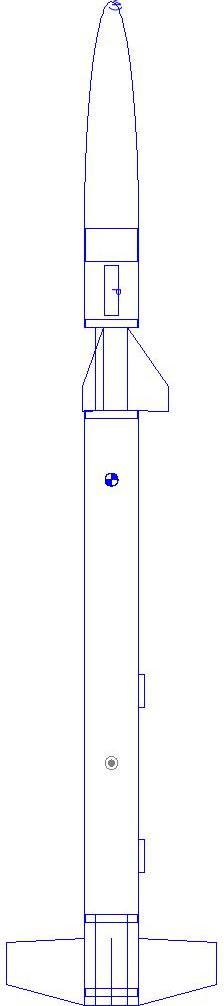

Matra Rocksim Design File

Contributed by Ron Watkins

• Manufacturer: Custom Rockets
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Style: Military

Comments: Large Rocket

Designer: Custom

Download oop_custom_matra.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Custom Rockets - Matra {Kit} (10018)
Style: Military

CG: 14.4775 inches from front
CP: 23.0561 inches from front
Margin: 5.23 Overstable

Parts Breakdown

• Matra Elliptical Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Custom Ring
• Top Flight Recovery Rip stop nylon Parachute (9.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]
• Matra Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes ESTES 2328 Launch Lug
• Estes ESTES 2328 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Apogee EB-50 Ring
• Matra Trapezoid Fin Set Trapezoid Fin Set
• Custom Ring
• Custom Ring
• Custom Ring
