oop_vb_extreme54.rkt Rocksim Design File

Contributed by Johnnie Paul

• Manufacturer: Vaughn Brothers

Download oop_vb_extreme54.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

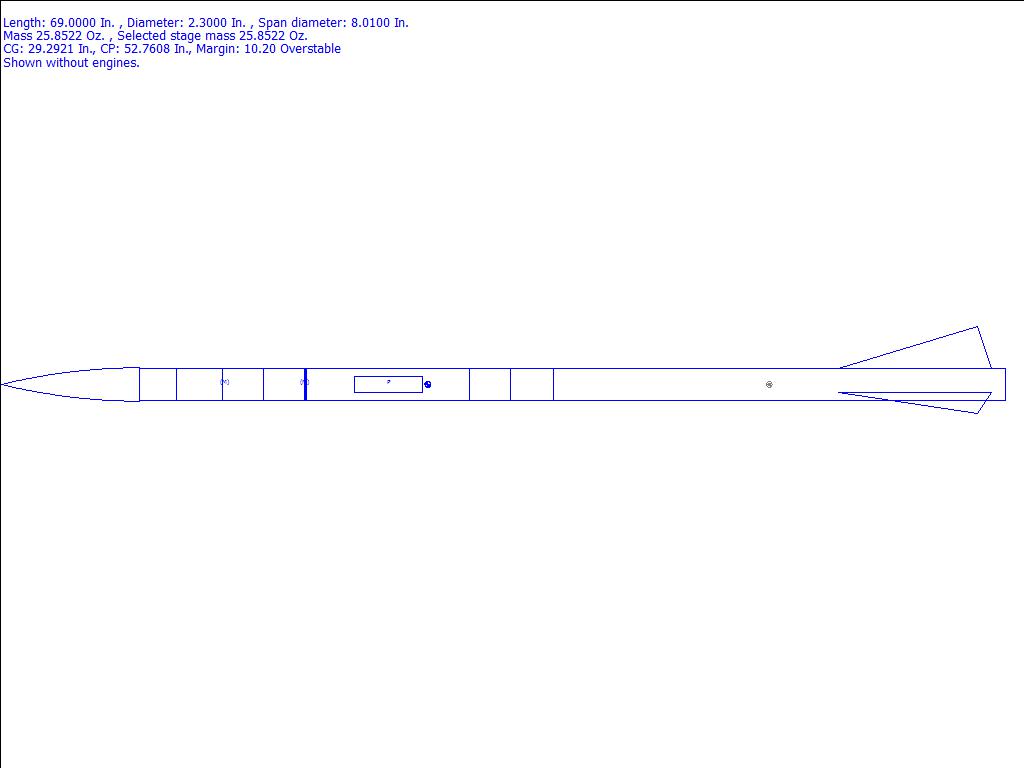

Kit Name: Vaughn Brothers - Extreme 54 {Kit}

CG: 29.2921 inches from front
CP: 52.7608 inches from front
Margin: 10.20 Overstable

Parts Breakdown

• LOC/Precision IQSY Tomahawk Ogiv Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.50 in]
• Public Missiles P5-SET Altimeter; Transolve P5 Mass Object
• LOC Precision TC-2.14 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• LOC Precision LOC BP-2.14 Ring
• Semroc SE-12 Screw Eye-Large Mass Object
• LOC/Precision Rip stop nylon Parachute (27.99 in)
• LOC Precision TC-2.14 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 34.00 in]
• oop_vb_extreme54.rkt Trapezoid F Trapezoid Fin Set
