Snipe Rocksim Design File

Contributed by Dick Stafford

• Manufacturer: THOY
• Recovery: Parachute
• Style: Sport

Designer: Thoy

Download oop_thoy_snipe_ds.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: THOY - Snipe {Kit} (PK-501) [1988-1993]
Style: Sport

CG: 34.4192 inches from front
CP: 50.8681 inches from front
Margin: 6.33 Overstable

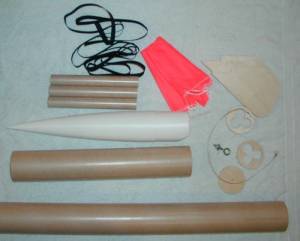

Parts Breakdown

• Snipe Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• LOC Precision LOC BP-2.56 Ring
• Public Missiles HDWE-KL-1.0 small Mass Object
• Public Missiles HDWE-EYE-1/8 1/8x24 Mass Object
• Public Missiles HDWE-NUT-3/16 1/8x24 Mass Object
• Public Missiles HDWE-WASH-3/16 For HDWE-EYE-1/8 Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 30.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.75 in]
• LOC Precision LOC CR-2.56-(3)0.9 Ring
• LOC Precision LOC CR-2.56-(3)0.9 Ring
• Public Missiles LL-0.25 Launch Lug
• Public Missiles LL-0.25 Launch Lug
• LOC Precision SC-500 1/2 In Elastic shock cord Mass Object
• LOC/Precision Rip stop nylon Parachute (28.00 in)
• Snipe Freeform Fin Set Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.75 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.75 in]
• Custom Mass Object
