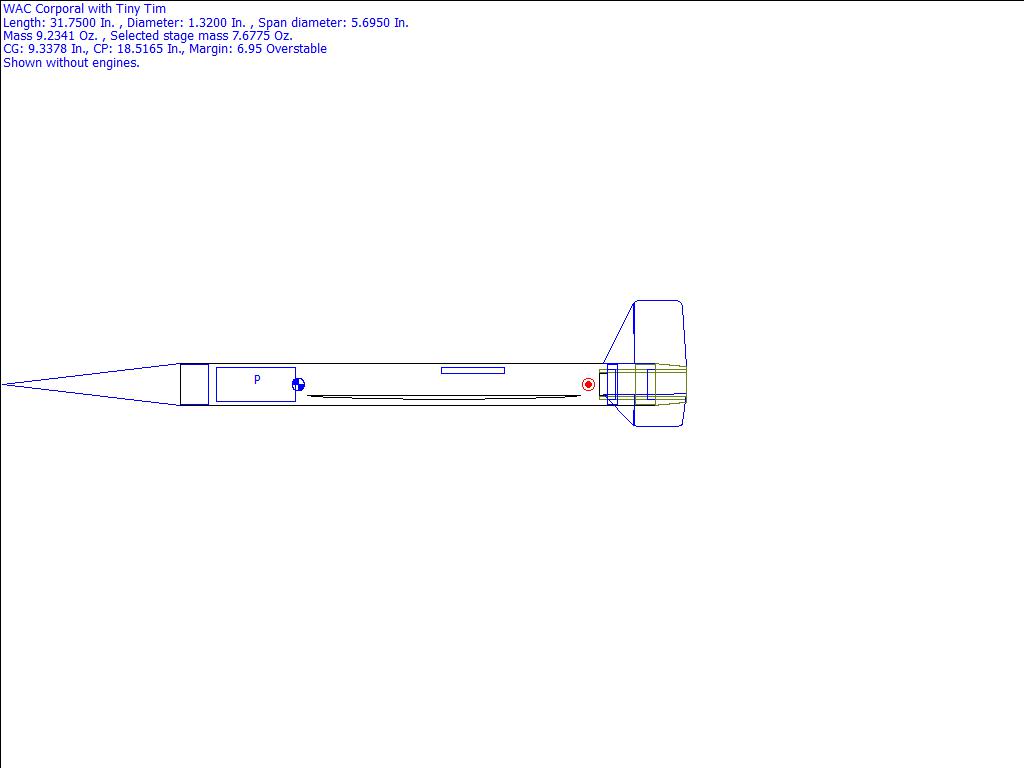

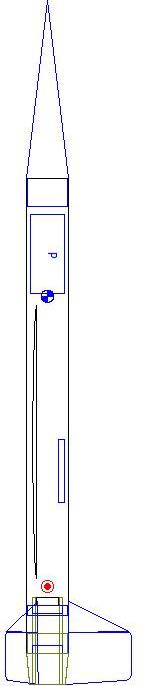

WAC Corporal with Tiny Tim Rocksim Design File

Contributed by Maxwell Eminussix

• Manufacturer: Aerospace Specialty Products
• Recovery: Streamer
• Scale: WAC Coporal
• Scale: WAC Corporal
• Skill Level: 2
• Style: Scale

Download asp_wac_corporal_tinytim.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

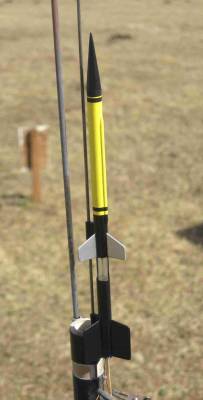

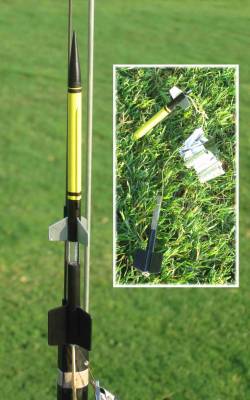

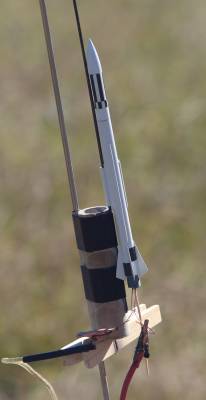

Kit Name: Aerospace Specialty Products - Micro WAC Corporal w/ Tiny Tim {Kit} (KWAC-MM)
Diameter: 0.2820 inches
Length: 7.0000 inches
Style: Scale

CG: 12.3091 inches from front
CP: 24.0255 inches from front
Margin: 8.88 Overstable

Parts Breakdown

• WAC Corporal with Tiny Tim Conic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Aerospace Speciality Products CR Ring
• Aerospace Speciality Products CR Ring
• Apogee 13029 Ring
• Aerospace Speciality Products CR Ring
• WAC Corporal with Tiny Tim Freef Freeform Fin Set
• Apogee Components Mylar Parachute (15.00 in)
• WAC Corporal with Tiny Tim Ellip Elliptical Fin Set
• Estes ESTES 2328 Launch Lug
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.44 in]
• Estes Estes Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.19 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.44 in]
• Aerospace Speciality Products CR Ring
• Aerospace Speciality Products CR Ring
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.06 in]
• Aerospace Speciality Products CR Ring
• WAC Corporal with Tiny Tim Freef Freeform Fin Set
• Estes ESTES 2328 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.75 in]
• Aerospace Speciality Products CR Ring
• Aerospace Speciality Products CR Ring
