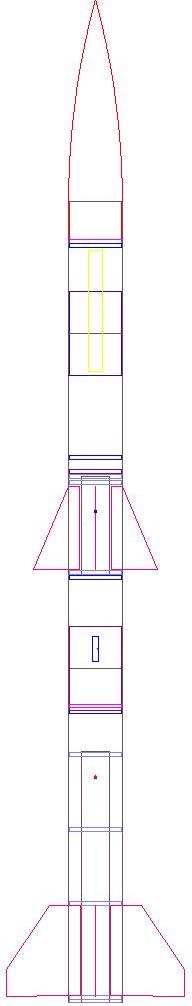

Amraam Rocksim Design File

• Manufacturer: Scratch

Comments: Tripoli Level 3 Certification Rocket Design

Designer: Carl Tulanko

Download scratch_amraamscale.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Amraam {Scratch}

CG: 73.4944 inches from front
CP: 111.6101 inches from front
Margin: 4.95 Overstable

Parts Breakdown

• 7.5 Amram Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 19.00 in]
• Public Missiles Ltd. CT-7.51 Ring
• Public Missiles CBP-7.5 Ring
• Public Missiles CBP-7.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (21.82 in)
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (104.53 in)
• Amraam Freeform Fin Set Freeform Fin Set
• Public Missiles BP-7.5 Ring
• Public Missiles BP-6.0 Ring
• Public Missiles CBP-7.5 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• Public Missiles CBP-7.5 Ring
• Public Missiles Ltd. CT-7.51 Ring
• Public Missiles CBP-7.5 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Public Missiles CR-7.5-3.9 Ring
• Amraam Freeform Fin Set Freeform Fin Set
