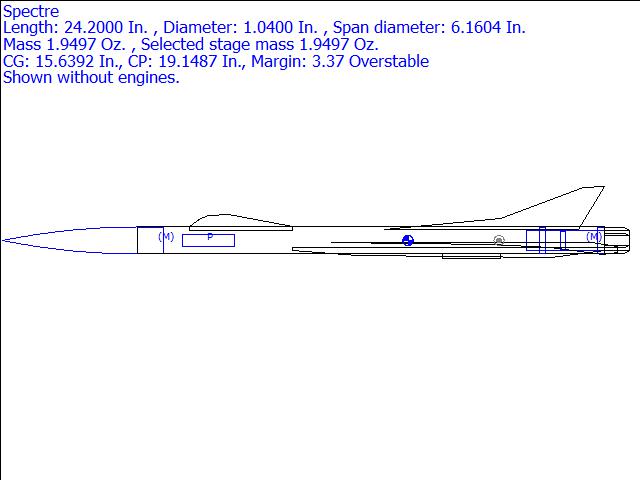

Spectre Rocksim Design File

Designer: C. P. McGraw -- BARCLONE Rocketry

Visit Ye Olde Rocket Forum to download Spectre.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Parts Breakdown

• Blue_Sneek.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Semroc TB-7 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• Spectre.rkt Freeform Fin Set Freeform Fin Set
• Spectre.rkt Freeform Fin Set Freeform Fin Set
• Spectre.rkt Freeform Fin Set Freeform Fin Set
• Spectre.rkt Freeform Fin Set Freeform Fin Set
• Spectre.rkt Freeform Fin Set Freeform Fin Set
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Semroc SE-10 Screw Eye Mass Object
• Semroc LL-122 Launch Lug
• Spectre.rkt Freeform Fin Set Freeform Fin Set
• Semroc CR-710 Ring
• Semroc CR-710 Ring
• Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• Freeform Fin Set
