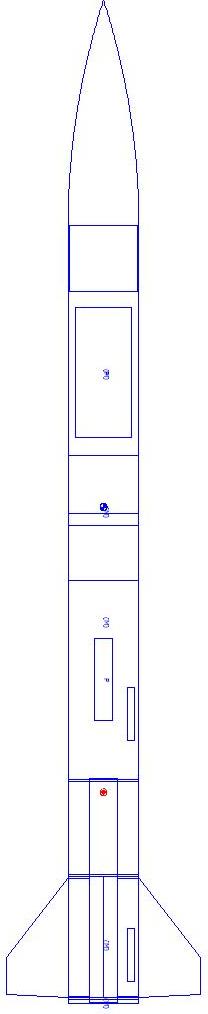

1-4PatriotLOC.RKT Rocksim Design File

Comments: Per motori rms da 29mm e 38mm

Designer: Francesco Banelli

Download 1-4PatriotLOC.RKT

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 28.6470 inches from front
CP: 44.7583 inches from front
Margin: 4.03 Overstable

Parts Breakdown

• 1-4PatriotLOC.RKT Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 16.24 in]
• Custom Mass Object
• Banelli Francesco Rip stop nylon Parachute (44.09 in)
• LOC Precision SCTN-20 Tubular Nylon 9/16 In x 20 Ft Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 0.71 in]
• LOC Precision TC-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 27.00 in]
• Custom Mass Object
• Custom Mass Object
• LOC Precision LOC CR-3.9-1.52 Ring
• LOC Precision SCTN-20 Tubular Nylon 9/16 In x 20 Ft Mass Object
• LOC/Precision Rip stop nylon Parachute (28.00 in)
• LOC Precision LOC CR-3.9-1.52 Ring
• LOC Precision LOC CR-3.9-1.52 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.66 in]
• Public Missiles PML LL-38 Launch Lug
• Public Missiles PML LL-38 Launch Lug
• 1-4PatriotLOC.RKT Trapezoid Fin Trapezoid Fin Set
