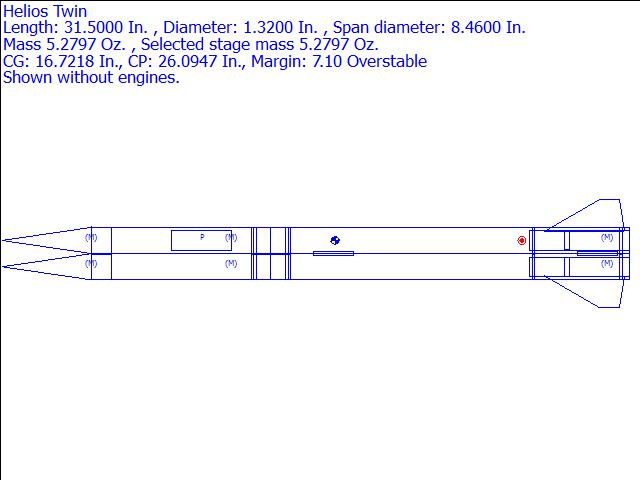

Helios Twin Rocksim Design File

Download Binary Star.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 16.7218 inches from front
CP: 26.0947 inches from front
Margin: 7.10 Overstable

Parts Breakdown

• Binary Star.rkt Conical Nose Cone
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Estes 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (18.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• BalsaMachining.com CR5055-W Ring
• BalsaMachining.com CR5055-W Ring
• Apogee 13031 Ring
• Estes Engine hook Standard size Mass Object
• BalsaMachining.com CR2055-W Ring
• Estes 30125 Ring
• Estes Estes Ring
• Estes ESTES 2328 Launch Lug
• Binary Star.rkt Freeform Fin Set Freeform Fin Set
• External Pod
• Binary Star.rkt Conical Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.00 in]
• Apogee 13031 Ring
• Estes Engine hook Standard size Mass Object
• BalsaMachining.com CR5055-W Ring
• BalsaMachining.com CR5055-W Ring
• Binary Star.rkt Freeform Fin Set Freeform Fin Set
• Binary Star.rkt Freeform Fin Set Freeform Fin Set
• BalsaMachining.com CR2055-W Ring
• BalsaMachining.com CR2055-W Ring
• Estes Estes Ring
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Estes ESTES 2328 Launch Lug
• Binary Star.rkt Freeform Fin Set Freeform Fin Set
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
