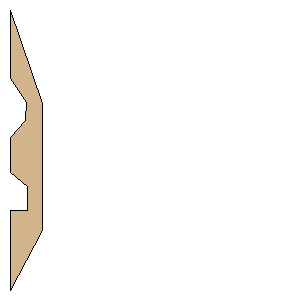

Alien Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 55.0986 mm) | | Point 2: | (12.1054 mm, 73.8312 mm) | | Point 3: | (11.6141 mm, 88.5678 mm) | | Point 4: | (-0.7572 mm, 102.2777 mm) | | Point 5: | (-0.7572 mm, 130.4767 mm) | | Point 6: | (13.0878 mm, 141.1282 mm) | | Point 7: | (13.0878 mm, 160.2858 mm) | | Point 8: | (-0.2149 mm, 160.3025 mm) | | Point 9: | (-0.2149 mm, 224.2926 mm) | | Point 10: | (25.3683 mm, 176.4960 mm) | | Point 11: | (24.8771 mm, 74.8136 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Width: | 2.1990 inches (55.8557 mm) | | Height: | 8.8304 inches (224.2926 mm) |
