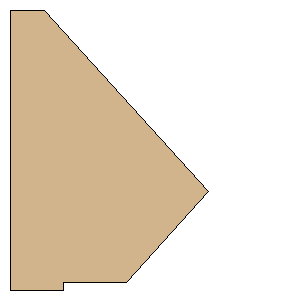

Madcow Rocketry Bomarc Freeform Freeform Fin SetManufacturer: | Custom | Part Number: | | Style: | Freeform Fin Set | Material: | Aircraft plywood (Birch) |
![](parts/fins.php?partid=854)
Download as PDF Point 1: | (0.0000 mm, 152.4000 mm) | Point 2: | (29.2100 mm, 152.4000 mm) | Point 3: | (29.2100 mm, 148.3360 mm) | Point 4: | (63.5000 mm, 148.3360 mm) | Point 5: | (107.9500 mm, 98.5520 mm) | Point 6: | (18.5420 mm, 0.0000 mm) | Point 7: | (0.0000 mm, 0.0000 mm) | Width: | 6.0000 inches (152.4000 mm) | Height: | 6.0000 inches (152.4000 mm) |
