Rocketry Parts Database >> Fins >>

Aerobee_150_RV-N-13b.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

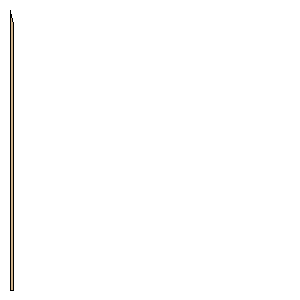

Point 1:(0.0000 mm, 243.8400 mm)
Point 2:(3.1750 mm, 243.8400 mm)
Point 3:(3.1750 mm, 18.9538 mm)
Point 4:(3.1598 mm, 17.7094 mm)
Point 5:(3.1140 mm, 16.4658 mm)
Point 6:(3.0379 mm, 15.2237 mm)
Point 7:(2.9313 mm, 13.9838 mm)
Point 8:(2.7944 mm, 12.7469 mm)
Point 9:(2.6272 mm, 11.5137 mm)
Point 10:(2.4299 mm, 10.2850 mm)
Point 11:(2.2025 mm, 9.0614 mm)
Point 12:(1.9453 mm, 7.8439 mm)
Point 13:(1.6582 mm, 6.6330 mm)
Point 14:(0.0000 mm, 0.0000 mm)
Width:9.6000 inches (243.8400 mm)
Height:9.6000 inches (243.8400 mm)
