Rocketry Parts Database >> Fins >>

Custom Balsa Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Balsa

Download as PDF

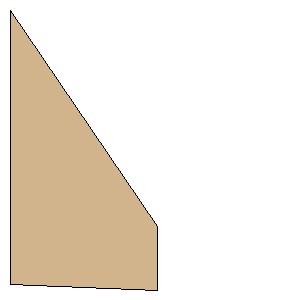

Root Chord:3.2500 inches (82.5500 mm)
Tip Chord:0.7500 inches (19.0500 mm)
Sweep Distance:2.5700 inches (65.2780 mm)
SemiSpan:1.7500 inches (44.4500 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(44.4500 mm, 65.2780 mm)
Point 3:(44.4500 mm, 84.3280 mm)
Point 4:(0.0000 mm, 82.5500 mm)
Width:1.7500 inches (44.4500 mm)
Height:3.3200 inches (84.3280 mm)
