Dr. Zooch Model Rocket Discoverer Thor Rocksim Design File

• Manufacturer: Dr. Zooch
• Motor Size: 18 mm
• Power: Low-Power
• Style: Scale

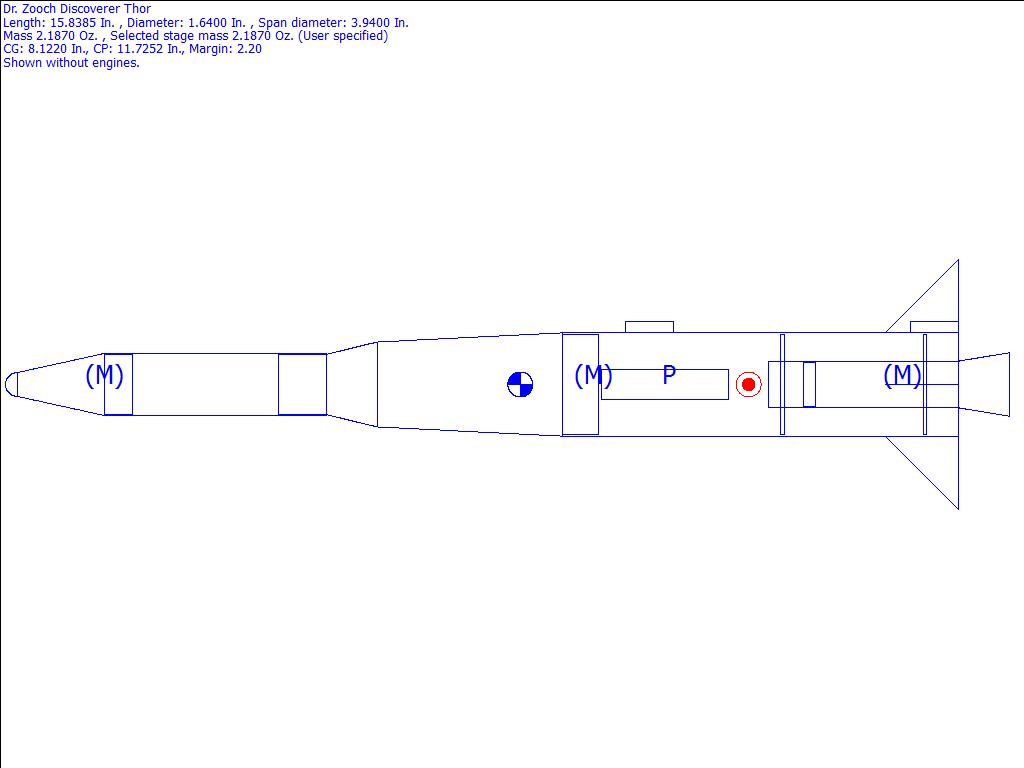

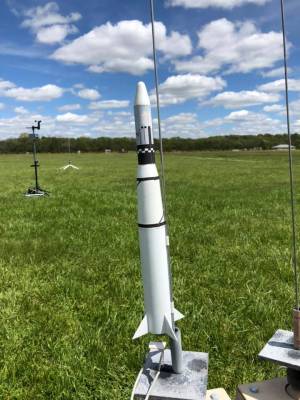

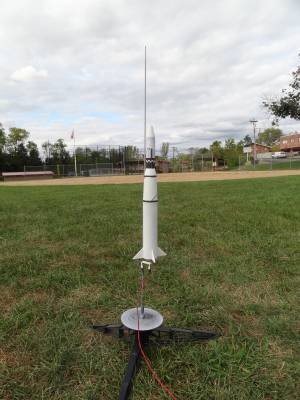

Comments: Finished rocket weighed and measured in launch configuration. CG was found by suspension from a string loop at exactly 0.50 inches from the front of the main T-60 tube, or 9.50 inches from the nose tip. The RockSim file has been modified using the CG override to reflect the measured CG, and the all up weight of my model (101 grams ready to launch) has been programmed using mass override. The CP calculation is set to the Barrowman calculation to reflect a more conservative 'worst case'. The nose cone and transition had to be similated in RockSim as two seperate components to get the round tip on the nose cone and the compound transition to appear correctly (as if they were two seperate parts glued together).

Download zooch_discoverer_thor.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Dr. Zooch - Discoverer Thor {Kit}
Style: Scale

CG: 8.1220 inches from front
CP: 11.7252 inches from front
Margin: 2.20

Parts Breakdown

• Dr. Zooch Model Rocket Discovere Nose Cone
• Dr. Zooch Conical Transition
• LOC Precision Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.50 in]
• Balsa Machining Service Conical Transition
• Balsa Machining Service Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.25 in]
• BalsaMachining.com CR2060-F Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• BalsaMachining.com CR2060-F Ring
• Dr. Zooch Model Rocket Discovere Freeform Fin Set
• Apogee Components Polyethylene LDPE Parachute (12.00 in)
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Apogee 13051 Launch Lug
• Apogee 13051 Launch Lug
• Dr. Zooch Conical Transition
