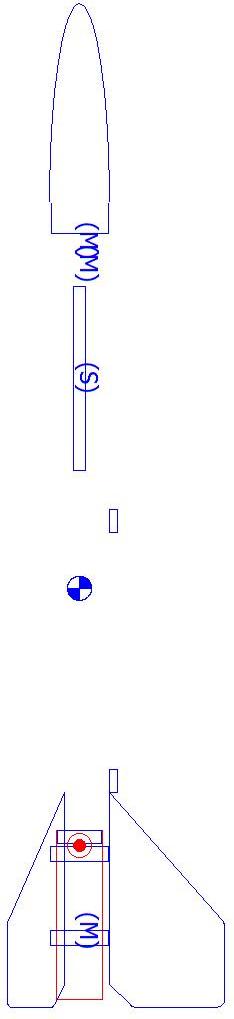

Arrow-C Rocksim Design File

Comments: entered into RockSim by Alan Estenson

Designer: unknown

Download plans_eirp01_arrow_c.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

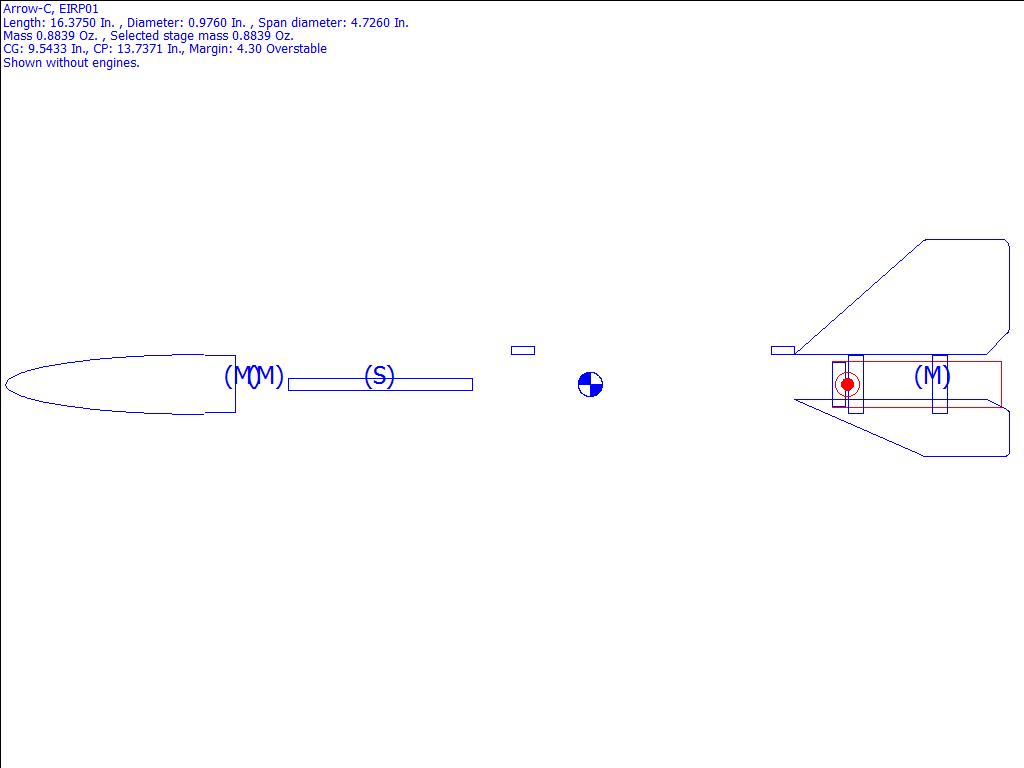

CG: 9.5433 inches from front
CP: 13.7371 inches from front
Margin: 4.30 Overstable

Parts Breakdown

• Custom Elliptical Nose Cone
• Estes Paper Body Tube (0.9760 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Engine hook Standard size Mass Object
• Estes Paper Ring (0.6510 - 0.7100 in)
• Apogee Components Paper Ring (0.7360 - 0.9500 in)
• Apogee Components Paper Ring (0.7360 - 0.9500 in)
• Estes Paper Launch Lug (0.1250 in)
• Estes Paper Launch Lug (0.1250 in)
• Custom Balsa Freeform Fin Set
• DIY Eye Hook #4 Mass Object
• Custom Mass Object
• Custom Polyethylene LDPE Streamer (0.0010 in)
