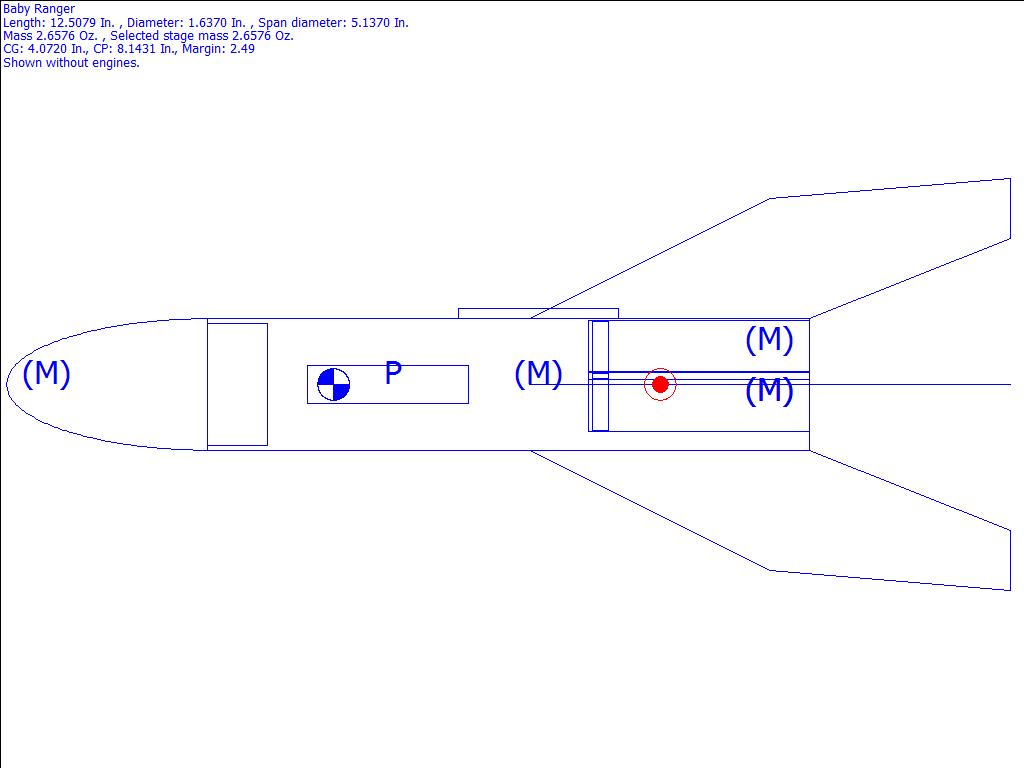

Baby Ranger Rocksim Design File

Comments: The Estes "Baby Bertha" kit-bashed in the same fashion as a "Big Bertha" to "Ranger" bash

Designer: Robert S. McMillan

Download mods_estes_baby_ranger.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 4.0720 inches from front
CP: 8.1431 inches from front
Margin: 2.49

Parts Breakdown

• Big Bad Bertha Elliptical Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.50 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Estes Baby Ranger Freeform Fin S Freeform Fin Set
• Estes ESTES 2321 Launch Lug
