Phoenix Rocksim Design File

Comments: 3 engine cluster

Designer: Rich

Download mods_estes_rich_phoenix.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

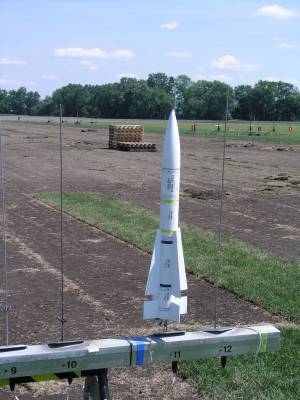

Kit Name: Estes - Phoenix (1380) [2001-2004]

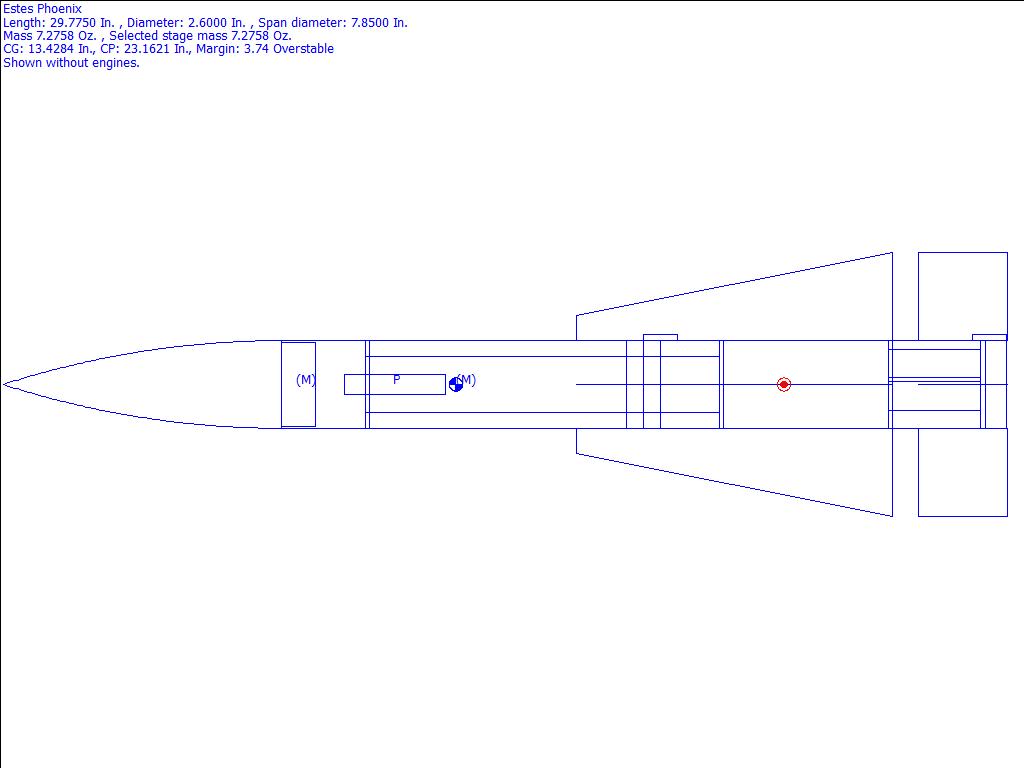

CG: 13.4284 inches from front
CP: 23.1621 inches from front
Margin: 3.74 Overstable

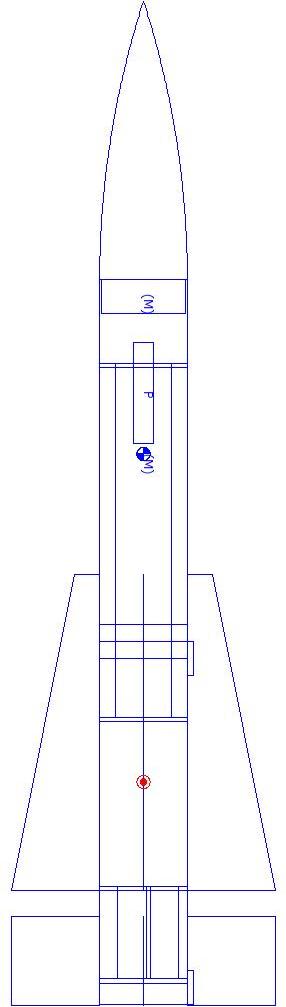

Parts Breakdown

• Estes Ogive Nose Cone
• Custom Mass Object
• EST 3090 BT-80 Paper Body Tube (2.6000 in)
• Estes JT-5C Paper Ring (2.5760 - 2.5880 in)
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Mass Object
• Vaughn Brothers Paper Body Tube (1.6350 in)
• Custom 1/8 Aircraft Plywood Ring (1.6350 - 2.5880 in)
• Custom Balsa Freeform Fin Set
• EST 3090 BT-80 Paper Body Tube (2.6000 in)
• Custom Balsa Trapezoid Fin Set
• Estes Paper Launch Lug (0.1880 in)
• Estes Paper Launch Lug (0.1880 in)
• Custom 1/8 Aircraft Plywood Ring (1.6350 - 2.5880 in)
• Custom Balsa Ring (0.9760 - 2.5880 in)
• Custom Balsa Ring (0.9760 - 2.5880 in)
• EST 3086 BT-50 Paper Body Tube (0.9760 in)
• EST 3086 BT-50 Paper Body Tube (0.9760 in)
• EST 3086 BT-50 Paper Body Tube (0.9760 in)
