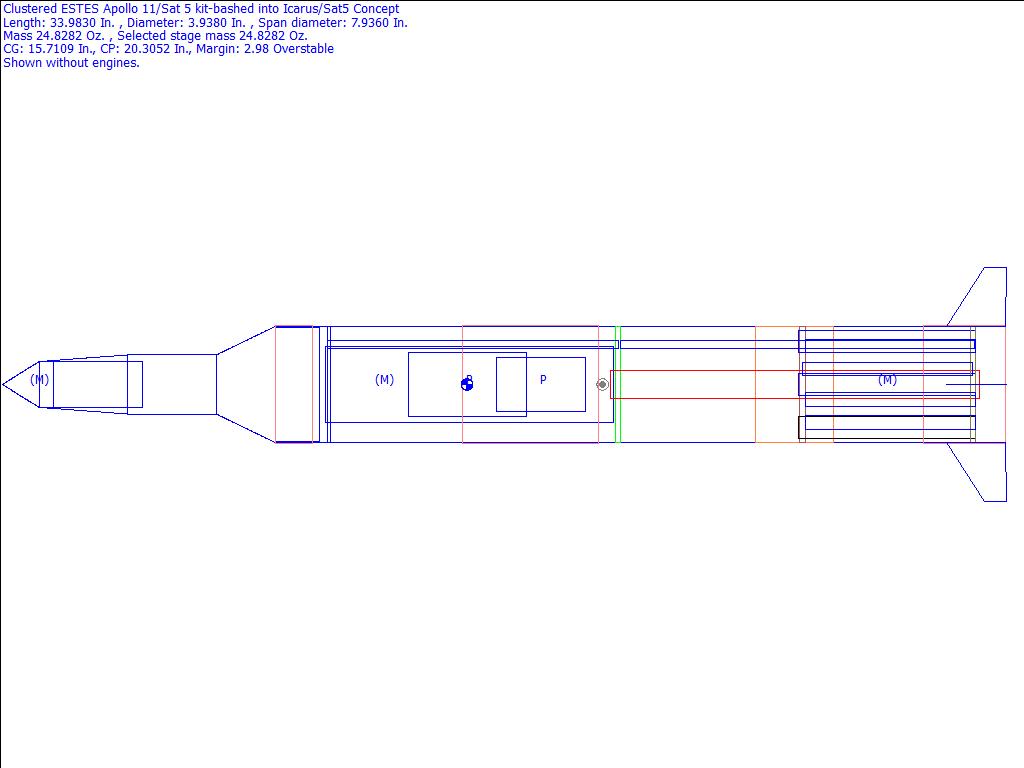

Saturn V (Icarus) Rocksim Design File

Designer: Self

Download mods_estes_clusteredestesicarus_sat5mixed.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

CG: 15.7109 inches from front
CP: 20.3052 inches from front
Margin: 2.98 Overstable

Parts Breakdown

• Custom ParabolicSeries Nose Cone
• Custom Conical Transition
• Custom Mass Object
• Estes Paper Body Tube (1.5400 in)
• Custom Paper Body Tube (2.0000 in)
• Custom Conical Transition
• Estes Paper Body Tube (3.9360 in)
• Custom Brass Body Tube (0.2700 in)
• Custom Brass Body Tube (0.2700 in)
• Apogee Components Paper Body Tube (0.4460 in)
• Apogee Components Paper Body Tube (0.4460 in)
• Apogee Components Paper Body Tube (0.4460 in)
• Custom Aircraft plywood (Birch) Ring (0.9760 - 3.8960 in)
• Custom Polystyrene PS Body Tube (4.0000 in)
• Custom Polystyrene PS Trapezoid Fin Set
• Apogee Components Paper Body Tube (0.4460 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Paper Body Tube (0.9760 in)
• Estes Engine hook Standard size Mass Object
• Custom Aircraft plywood (Birch) Ring (0.9760 - 3.8960 in)
• Estes Polystyrene PS Body Tube (3.9380 in)
• Custom Paper Ring (2.6000 - 3.8960 in)
• Estes Rip stop nylon Parachute (24.00 in)
• Estes Rip stop nylon Parachute (18.00 in)
• Custom Paper Ring (0.9760 - 3.8960 in)
• Custom Polystyrene PS Body Tube (4.0000 in)
• Estes Paper Body Tube (2.6000 in)
• Custom Mass Object
• Custom Polystyrene PS Body Tube (4.0000 in)
