Making a Hemispheric Nylon Parachute

I will attempt to document the steps and consolidate the information I gathered to make a nylon hemi parachute. Don't let your wife's or mother's sewing machine intimidate you...you can do it! Let me preface by saying, I have never attempted to sew anything in my life until a couple days ago. Previously, I cut and pinned fabric while the wife sewed, but I got brave and finally tried it myself. For some of you this is old hat and you maybe have variations on the method I am about to decribe, any input is welcomed. This just works for me.

Practice on a few scraps of fabric first and get to know the machine. It might help if someone is around who actually has some experience with sewing just in case you need some pointers starting out; threading the machine, reversing direction, changing stitch settings, etc. It's not hard, promise. I was sewing my own chutes the first day with the machine. Just take your time starting out, stitch slowly at first and don't let the machine get away from you, you're not working in a sweat shop!

FabricYou'll need some ripstop nylon fabric, obviously. It can be purchased in many different mils(thickness), textures, and colors....just like any fabric come to think of it. I usually just buy whatever is on the $1.50 clearance at Joanns or the dollar table at Walmart. A few yards of fabric will make a LOT of LPR chutes, and quite a few MPR chutes. We tend to like bright colors for spotting rockets, but for the cost difference, I'm not picky. This stuff generally runs $7+ dollars per yard at regular price, still not bad considering the price of a ready made chute. Here are some samples of fabric I scored from the discount tables.

First step is deciding the size chute you want and how many gores(panels). I discovered a link in another thread that helps with sizing the gores and printing a gore pattern, it can be found here.

Start with a six or eight gore pattern just starting out. I'm not entirely sure how hemi sizes work, but can tell you that an 8" hemi comes out looking and performing(probably better) more like a 12" hex parasheet. Your gore pattern will be limited to 12" on this program, mostly due to standard paper size, but I was able to stretch the 12" gore pattern to 125% with my printer settings. This took me to about a 14" gore, I'm guessing. I use a 50% sphere so I have enough fabric to make the hems. Don't get carried away with spillhole size. I went with .5 on the smaller chutes and 1 inch on the larger chutes. Those sizes will actually increase by a 1/2 inch or more once you hem the fabric, just keep that in mind when you size your spill hole.

GoresFor this demo, I chose to make an 8 gore hemi chute with the upscaled 12" pattern. I think I chose 1.5 for the spillhole size.

Cut out your paper pattern and transfer the outline to the fabric...I used a Sharpie for this. This is a familiar step for most of us who have cut out fin patterns in the past. Use a good pair of fabric scissors to cut out the gores from the fabric, this will limit the amount of fraying and give you a nice clean edge. You should wind up with 8 panels all the same size like this... gore pattern


Pinned PairNext step is to start pinning the gores together. Start by pinning the gores in pairs like this...

Note that the gores are all pinned on the same side and that the colors are stacked the same. This is important when it comes time to assemble all the gores together, this keeps a uniform A B A B A B...pattern, assuming you are using two colors. Same rules apply using three or more colors.

Straight Stitch SettingUse a straight stitch to sew the paired gores together. My machine settings look like this...

Sew the pinned side of the paired gores together, about a 1/4 inch from the edge. Start at the top and work your way down. The machine should have a reverse feature which should reverse direction and let you backup. "Lock" the first few forward stitches by reversing direction for a few stitches then allow it to move forward again. This "locking" technique should be used at the beginning and end of EVERY seam to keep the thread from pulling out.

Your paired gores should look like this (BELOW-LEFT) after they have been stitched together.

Join two pairs together following the same technique as before (BELOW-RIGHT).

Two Gore Sewn Four Gore

Join the two completed 4 gore sections together for one last seam, again using the same method as before. Sorry, no picture here, but I think you get the drift. You should wind up with a semicircle and something that is starting to resemble a parachute.

Hem the bottom edges of your semicircle. Fold and pin the edge about a 1/4 inch. I like to fold it over twice on the larger chutes to make a neater, more finished edge, but once will suffice.

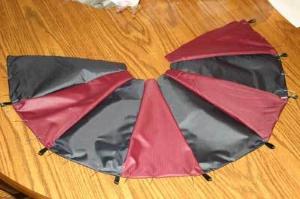

Reverse side showing the entire edge pinned up.

Pinned Hem Reverse Pinned Hem

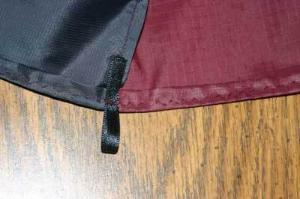

Ribbon LoopYou can see I have pinned some ribbon loops to the edge. These are for the shroud lines to attach to. Some folks stitch the shroud lines right into the gore seams, but loops just seemed easier to me. Cut 8 (or however many shroud lines you need) two inch strips. Fold the strips over and pin somewhere near the gore seams. Here is a pic of the ribbon I used, 50 cent for 10 yards at Joanne's Fabric.

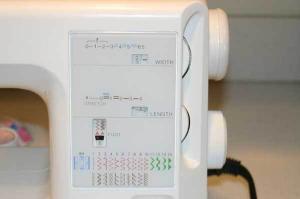

Now it's time to stitch the bottom hem. I use a zigzag pattern for the hem. Machine settings look like this (BELOW-RIGHT).

Zig-Zag Setting

Again, remember to "lock" the thread at the beginning and end. Go slowly and remove the pins as you go. However keep the ribbon loops pinned until you make a pass over them. Remember the reverse feature? Reverse direction over each ribbon loop you come to, adds more stitches over that area and secures the loops better. Then, continue zigzagging to the next loop, reverse zigzag over loop, and so on. Remember to lock your stitch at the very end of the hem. Should look like this when your done (BELOW-LEFT).

Trim the excess ribbon (BELOW-RIGHT).

Completed Hem Trim Loops

Spill Hole HemPin the top of the chute(spillhole). Again, 1/4 inch, I just use a single fold for the top....

Use the same zigzag stitch as the bottom to hem the spillhole. Sewing the spillhole is the trickiest part because of the tight radius, just take your time and go slow. Removing pins as you go should help.

It's time to join the edges of your semicircle together and actually form the chute. This is your last bit of sewing. Pin and attach the gores just like you did the previous ones. Don't forget to change the stitch setting back to the straight pattern you used before.

Remember, we have been working on the inside of the chute. Once the final stitch has been made, you can turn the outside-in, or inside-in, or the outside-out, however you want to say it. Here is what it should look like now.

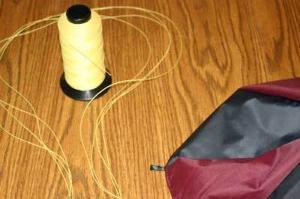

All that is left to do is attach the shroud lines. I prefer Kevlar® for the lines, but upolstery thread and curtain cord can be used as well. Each line coming down from the chute to the apex should be about 1.5 times the length of the chute diameter. I hope Micro doesn't mind me using his pic, but here is the shroud line attachment for a six line arrangement. shroud line attachment (6 lines)

Finished Kevlar

Line AttachmentMost of us are familiar with the "B" method since this is how the kit chutes usually come, but I just tried the "A" method not long ago, and I like it much better.

Good idea to use an overhand knot to attach all the lines together at the bottom to keep all the lengths even.

I use a bowline knot to attach the shroud line ends to the ribbon loops. This is where your Boy Scout training skills come in handy. You were a Boy Scout weren't you? Bowline knot

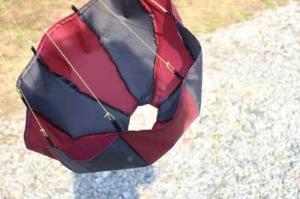

Here is the finished chute catchin' wind.

Rolled and ready to go.

Catching Wind Folded and Ready

Much of this may be elementary to some, but I hope this helps.

Contributed by Craig Zicafoose

Comments:

Anne Fleischmann (January 25, 2015)

If you have access to a serger machine, you can sew the seams and finish the raw lower edges with that machine. Doing the spill hole may be too tough, given the tight radius.
