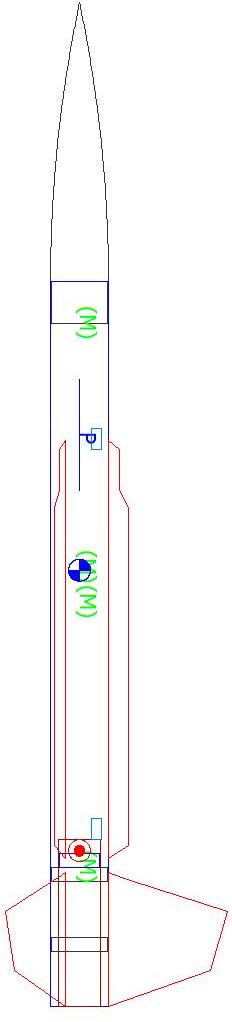

Nomad Rocksim Design File

Comments: 1/8" Balsa Body and 3 fins painted flat green. Area above body strakes gloss black. Nose cone silver. Flight records in EMRR

Designer: Centuri Engineering File Created by Raul Pena, May 2009 Revised by Marlin Meyer 2009

Download marlin_Nomad.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 10.1722 inches from front
CP: 15.2017 inches from front
Margin: 4.84 Overstable

Parts Breakdown

• marlin_Nomad.rkt Ogive Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.00 in]
• SubAssembly
• RocketChutes.com Rip stop nylon Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• SEMROC Astronautics CR-710 Ring
• SEMROC Astronautics CR-710 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• SEMROC Astronautics TB-7 Ring
• marlin_Nomad.rkt Freeform Fin Se Freeform Fin Set
• marlin_Nomad.rkt Freeform Fin Se Freeform Fin Set
• SEMROC Astronautics LL-103 Launch Lug
• SEMROC Astronautics LL-103 Launch Lug
• Semroc Mass Object
• Semroc Mass Object
