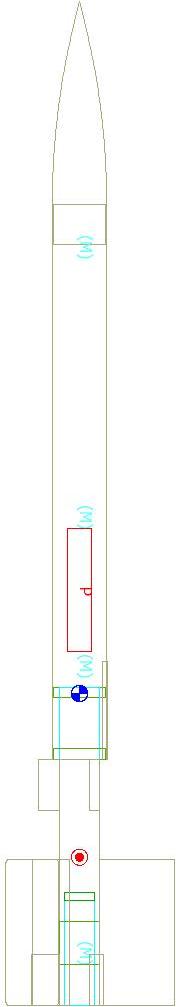

Photon Disruptor Rocksim Design File

Contributed by Bruce Levison

Comments: Estes Classic Series third incarnation of this design #3025 Used my fins on fins techniques for this one!

Designer: Estes

Download photondisruptor#3025.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

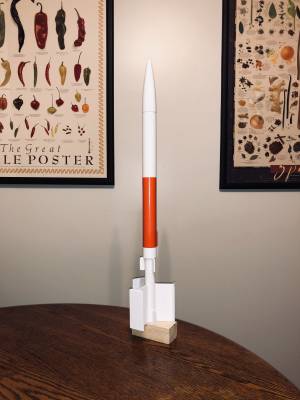

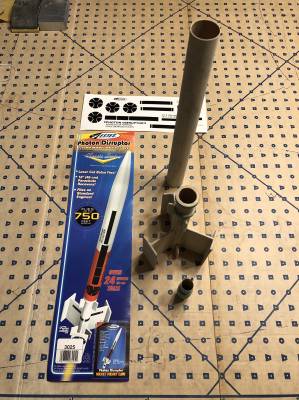

Kit Name: Estes - Photon Disruptor (1282, 3025) [1976-1981,2010-]

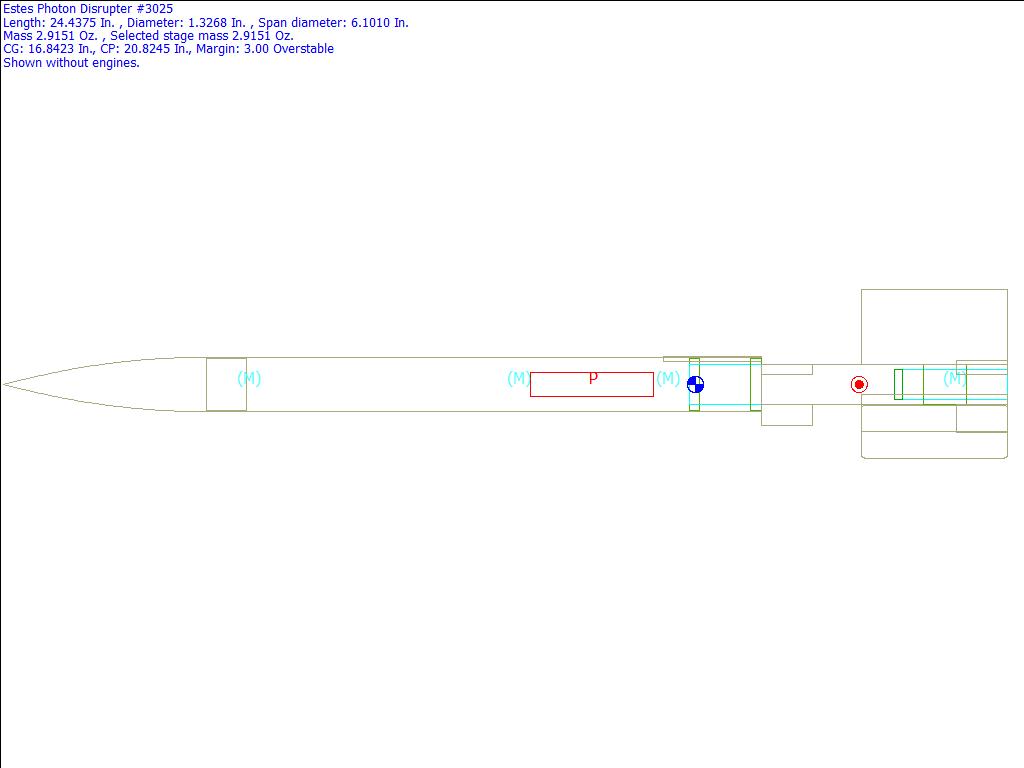

CG: 16.8423 inches from front
CP: 20.8245 inches from front
Margin: 3.00 Overstable

Parts Breakdown

• Estes Ogive Nose Cone
• Estes 038251 Screw Eye Mass Object
• Estes Paper Body Tube (1.3200 in)
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes Mass Object
• Estes Paper Ring (0.7362 - 1.2638 in)
• Estes Paper Launch Lug (0.1250 in)
• Estes Paper Body Tube (0.9760 in)
• Estes Paper Ring (0.7362 - 1.2638 in)
• Estes Mass Object
• Estes Paper Body Tube (0.9760 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Engine hook Standard size Mass Object
• Estes Paper Ring (0.6496 - 0.7087 in)
• Estes Paper Ring (0.7362 - 0.9500 in)
• Custom Balsa Trapezoid Fin Set
• Custom Balsa Trapezoid Fin Set
• Custom Balsa Trapezoid Fin Set
• External Pod
• Custom Balsa Freeform Fin Set
• Custom Balsa Trapezoid Fin Set
• External Pod
• Custom Balsa Freeform Fin Set
• Custom Balsa Trapezoid Fin Set
• External Pod
• Custom Balsa Freeform Fin Set
