Building for a NAR L1. Good Kit and goes together easy but did have warped fins out of the box. I used angle and clamps to keep them straight till the glue dried. All tubes fit together just right.
weight without engine 93oz
weight with engine 117 oz
Looks like I’ll fly this one with a J500 for my L2 also this Spring. Update, I passed my written L2 test without any problems, and flew it on a Aerotech J500G, great choice for my L2 in this Rocket.
I got a K185W, it has a 8 sec burn and should put this into the Mile high club.
UPDATE: Flew this in Orangeburg to 6700'
Reloads I have tried: I364FJ, I327DM, J500G, K185W, CTI I236
| Flight Date: | 2013-08-31 |
| Rocket Name: | HyperLOC 835 |
| Kit Name: | LOC/Precision - HyperLOC 835 |
| Flyer's Name: | Rodney Earp |
| Motors: | K185 |
| Expected Altitude: | 6,200.00 Feet |
| Wind Speed: | 2.00 mph |
| Launch Site: | ROSCO |
| Actual Altitude: | 6,777.00 Feet |
This was a very high flight, got to 6777'. By far the highest and fastest I'd have sent anything, but the HyperLOC held togehter once again for a great flight, the speed was 720 FPS. The sky was clear and we could see it all the way to the ground. Wind was light and drift wasn't bad, only about 100 yrds from the pad.
The K185W was a long burn motor and got very hot! The reason I know is the the paint was burned and flaking up on the aft centering ring, will need to be repainted.

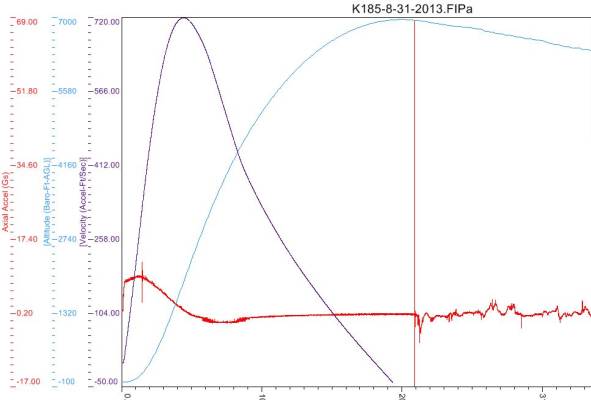

\Raven 3 files\K185-8-31-2013.FIPa
Average PreLaunch Altitude (ft) = Val: 151.00
Average PreLaunch Axial (Gs) = Val: 0.96
Average PreLaunch Axial Offset = Val: 0.96
Axial Accel (Gs) = Min: -2.10 Max: 12.18
Baro (Atm) = Min: 0.7684 Max: 0.9946
Current Draw (A) = Min: 0.00 Max: 0.00
Flight Count = Val: 64.00
Lateral Accel (Gs) = Min: -0.14 Max: 1.90
Motor Ignition Time (sec) = Val: 0.115
Temperature (F) = Min: 103.75 Max: 103.87
Time (sec) = Min: 0.000 Max: 20.130
Velocity (Accel-Ft/Sec) = Min: -1 Max: 727
Volts Battery (V) = Min: 8.08 Max: 8.08
Volts Pyro 3rd (V) = Min: 8.04 Max: 8.06
Volts Pyro 4th (V) = Min: 8.04 Max: 8.08
Volts Pyro Apogee (V) = Min: 8.08 Max: 8.08
Volts Pyro Main (V) = Min: 8.04 Max: 8.04
[Altitude (Accel-Ft)] = Min: 0 Max: 6399
[Altitude (Baro-Ft-AGL)] = Min: 0 Max: 6958
[Altitude (Baro-Ft-ASL)] = Min: 151 Max: 7109
[Velocity (Accel-Ft/Sec)] = Min: -41 Max: 720
[Velocity (Accel-MPH)] = Min: -28 Max: 491
| Stage | Motor(s) |
|---|---|
| 1 | Aerotech K185W |
