BSD Thor Rocksim Design File

Contributed by Pierre Mai

• Family: BSD : Thor
• Manufacturer: BSD High Power Rocketry

Comments: This is set to equal the weight of my rocket, you may need to adjust for yours

Designer: BSD - RockSim Pierre Mai

Download bsd_thor_3original.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

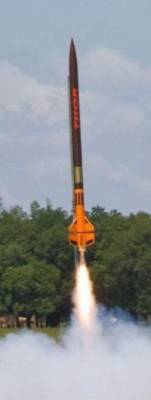

Kit Name: BSD High Power Rocketry - Thor (3") {Kit}

CG: 37.1239 inches from front
CP: 50.8633 inches from front
Margin: 4.58 Overstable

Parts Breakdown

• BSD Thor Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Custom Mass Object
• Custom Ring
• Public Missiles Ltd. PML CT-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Public Missiles Ltd. PML CT-3.90 Ring
• Custom Ring
• Custom Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Custom Ring
• Public Missiles PML CR-14 Ring
• Public Missiles PML CR-14 Ring
• Public Missiles PML CR-14 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• Custom Ring
• Public Missiles PML LL-50 Launch Lug
• Public Missiles PML LL-50 Launch Lug
• BSD Thor Freeform Fin Set Freeform Fin Set
• BSD Thor Freeform Fin Set Freeform Fin Set
• Custom Rip stop nylon Parachute (36.00 in)
