Cheetah Rocksim Design File

Contributed by Joe Policy

• Manufacturer: FlisKits
• Recovery: Streamer
• Skill Level: 2
• Style: Multi-Stage

Designer: FlisKits

Download fliskits_cheetah.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

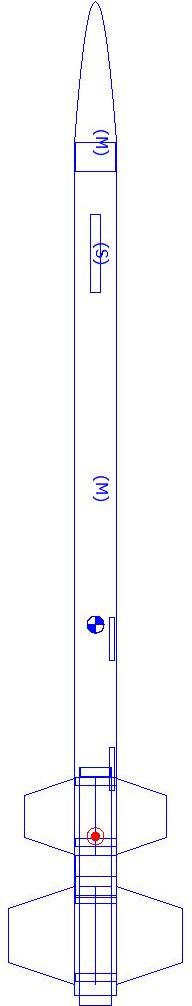

Kit Name: FlisKits - Cheetah (MS001)
Diameter: 0.9760 inches
Length: 23.8000 inches
Style: Multi-Stage

CG: 14.4360 inches from front
CP: 19.3461 inches from front
Margin: 5.03 Overstable

Parts Breakdown

• Cheetah Parabolic Nose Cone
• FlisKits SE-M Screw Eye - Medium Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.00 in]
• FlisKits CPL-50-01 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• FlisKits EB-20-0025 Ring
• FlisKits CRF-20-50 Ring
• FlisKits CRF-20-50 Ring
• Cheetah Trapezoid Fin Set Trapezoid Fin Set
• FlisKits LL-1-1 Launch Lug
• FlisKits LL-1-1 Launch Lug
• Custom Mass Object
• FlisKits Paper Streamer (0.0012 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.76 in]
• FlisKits CRF-20-50 Ring
• FlisKits CRF-20-50 Ring
• Cheetah Trapezoid Fin Set Trapezoid Fin Set
