36D Squared Modified Rocksim Design File

Contributed by Darrell Smith

• Designer: Ken Montayne
• Manufacturer: Estes
• Motor Size: 24 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 2
• Style: Cluster
• Style: Payload

Comments: This is a stock Estes 36D Squared kit modified with slightlyl altered Big Daddy fins and a BT60 Ogive nosecone.

Designer: Darrell Smith

Download estes_36d_squared.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

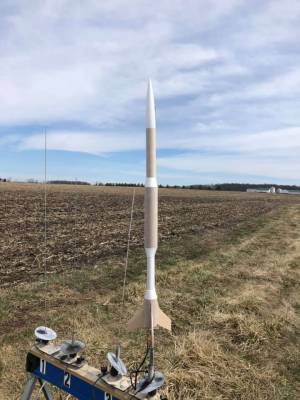

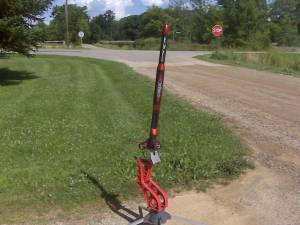

Kit Name: Estes - 36 D Squared {Kit} (2119) [2005-2009]
Diameter: 2.2170 inches
Length: 36.0000 inches
Style: Cluster

CG: 22.5000 inches from front
CP: 31.1790 inches from front
Margin: 3.91 Overstable

Parts Breakdown

• Estes 36D Squared Modified Ellip Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Estes Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Apogee EB-50 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.00 in]
• Apogee EB-50 Ring
• Hawk Mountain Ring
• Hawk Mountain Ring
• LOC LOC LL25 Launch Lug
• Estes Polyethylene LDPE Parachute (18.00 in)
• LOC Precision SC-250 1/4 In Elastic shock cord Mass Object
• Estes Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.50 in]
• Estes Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.50 in]
• LOC LOC LL25 Launch Lug
• Hawk Mountain Ring
• Hawk Mountain Ring
• Estes Engine hook Standard size Mass Object
• Estes Engine hook Standard size Mass Object
• Estes 36D Squared Modified Freef Freeform Fin Set
