AMRAAM AIM-120 Rocksim Design File

• Manufacturer: Scratch

Comments: First model using papered fins. Some details in .pdf file found on Public Missiles website. Decals on file-made from scratch

Designer: Estes Industries Marlin Meyer December 2009

Download scratch_marlin_aim120_ammram.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

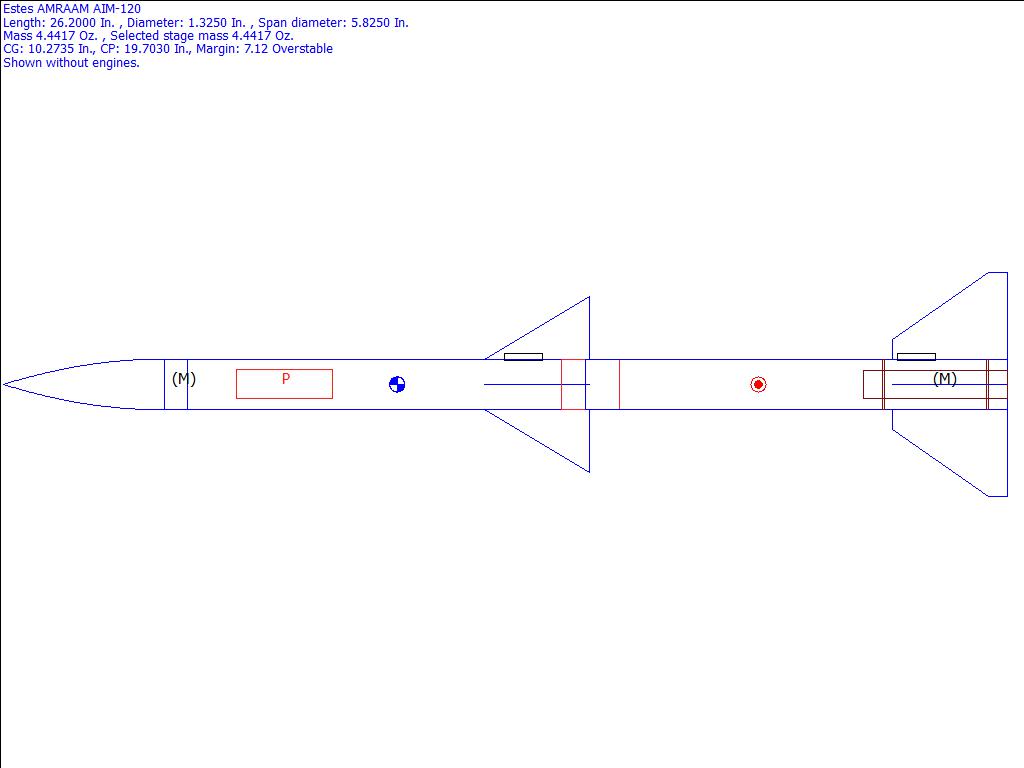

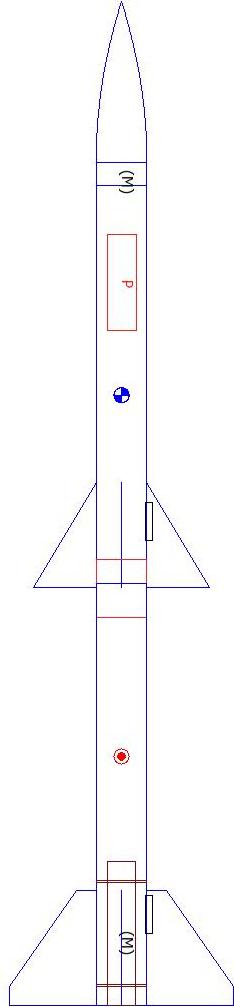

Kit Name: Scratch - AMRAAM AIM-120 {Scratch}

CG: 10.2735 inches from front
CP: 19.7030 inches from front
Margin: 7.12 Overstable

Parts Breakdown

• Estes AMRAAM AIM-120 Ogive Nose Cone
• Semroc SE-2 Screw Eye 3/4in (3/4in.x.14 in.) Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.00 in]
• Estes AMRAAM AIM-120 Trapezoid F Trapezoid Fin Set
• Semroc JT-55C Ring
• Topflight Recovery 1.7 oz. Ripstop Nylon Parachute (15.00 in)
• SEMROC Astronautics LL-110 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.00 in]
• Estes AMRAAM AIM-120 Freeform Fi Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.75 in]
• Semroc RA-2055 Ring
• Semroc RA-2055 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• SEMROC Astronautics LL-110 Launch Lug
