NASA Pegasus Rocksim Design File

Contributed by Darrell Smith

Designer: Darrell Smith

Download oop_estes_nasa_pegasus.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

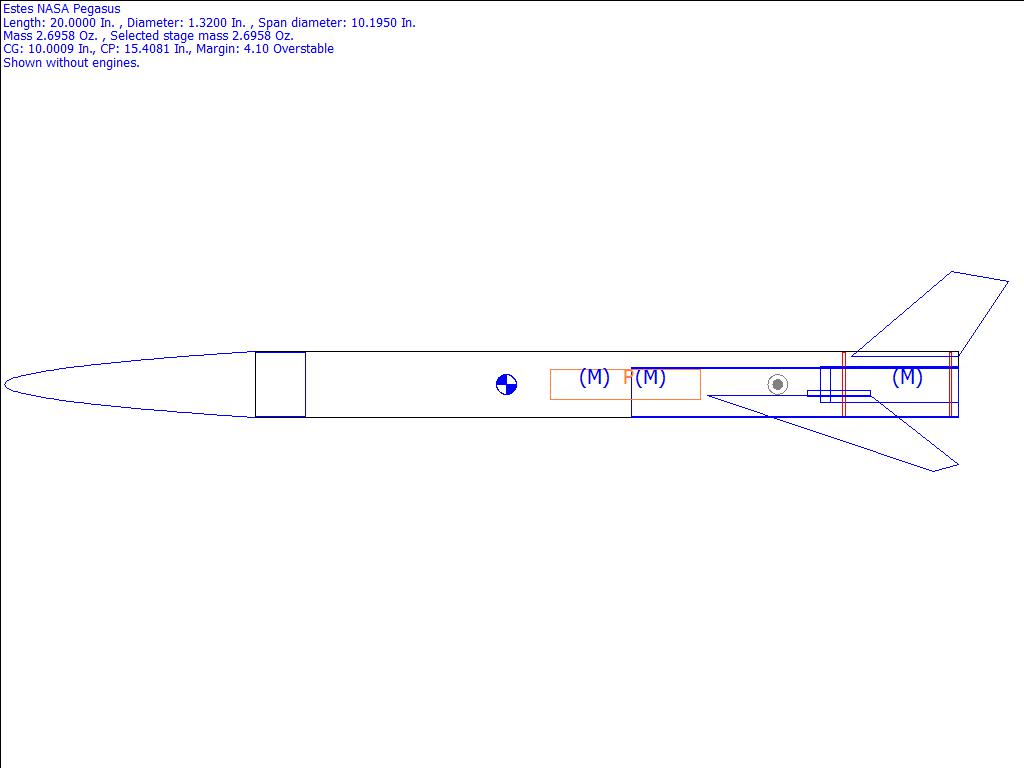

CG: 10.0009 inches from front
CP: 15.4081 inches from front
Margin: 4.10 Overstable

Parts Breakdown

• Estes Parabolic Nose Cone
• Estes Paper Body Tube (1.3200 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Paper Ring (0.6496 - 0.7100 in)
• Estes Polyethylene LDPE Parachute (18.00 in)
• Estes Paper Launch Lug (0.1250 in)
• Estes Paper Launch Lug (0.1250 in)
• Custom Balsa Freeform Fin Set
• Custom Balsa Freeform Fin Set
• TubeFinSet
• TubeFinSet
• Custom Balsa Freeform Fin Set
• Custom Balsa Freeform Fin Set
• Estes Engine hook Standard size Mass Object
• Estes Mass Object
• Estes Paper Ring (0.7360 - 1.2800 in)
• Estes Paper Ring (0.7360 - 1.2800 in)
• Estes Mass Object
