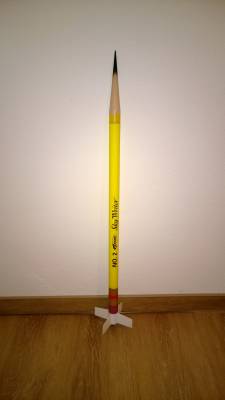

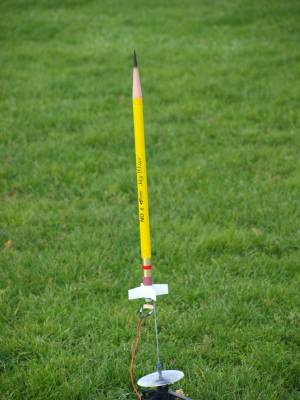

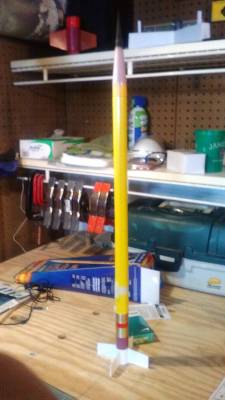

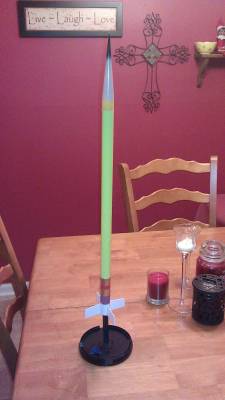

Sky Writer Rocksim Design File

Contributed by G.A. Dean

• Designer: Ken Montayne
• Manufacturer: Estes
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Odd-Roc

Comments: Pencil Rocket

Designer: Estes

Download estes_skywriter.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - No. 2 Sky Writer {Kit} (1260)
Diameter: 0.9800 inches
Length: 26.0000 inches
Style: Odd-Roc

CG: 17.5000 inches from front
CP: 24.4932 inches from front
Margin: 7.17 Overstable

Parts Breakdown

• Estes Sky Writer Conical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Custom Ring
• Custom Mass Object

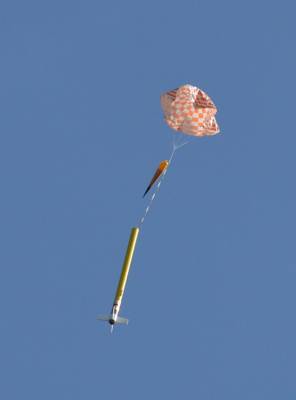

• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 9.50 in]
• Estes ESTES 2321 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.25 in]
• Estes Sky Writer Trapezoid Fin S Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Estes 30162-2 Ring
• Estes Engine hook Standard size Mass Object
• Custom Ring
