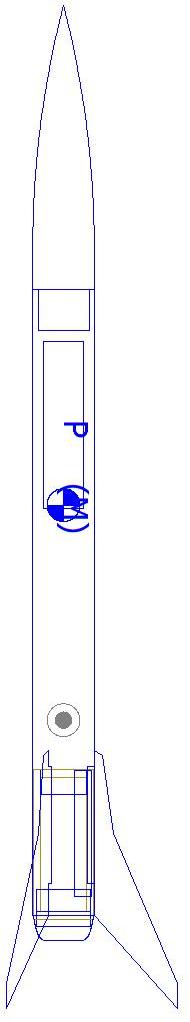

estes_bandito.rkt Rocksim Design File

Contributed by Jarrett Gorin

Comments: This is a pretty accurate match of the actual kit. I had to model the plastic fin frame as an inside tube, but the weight is accurate for it. Also, there is a small ridge on the plastic engine cap that is not possible to model accurately. Flight simulations include all available Estes mini (13mm) motors. I live in Southern California, so these are all at 70 degrees Farenheit.

Designer: Design by Estes (Kit 0803). Dimension input by Jarrett Gorin. April 21, 2008.

Download estes_bandito.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

Parts Breakdown

• Estes Ogive Nose Cone
• Estes Paper Body Tube (0.7360 in)
• Estes Polystyrene PS Body Tube (0.7100 in)
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes 38373 Mass Object
• Estes Paper Body Tube (0.5440 in)
• Estes Custom Ring (0.4400 - 0.5400 in)
• Estes Polystyrene PS Ring (0.5400 - 0.6400 in)
• Estes Polystyrene PS Ring (0.5118 - 0.6400 in)
• Estes Polystyrene PS Freeform Fin Set
• Estes Polystyrene PS Launch Lug (0.2000 in)
• Estes PowerSeries Transition

What You Can Do

• Submit a File Related to this Rocksim Design File
• Submit a Rocksim Design File to RocketReviews.com
