Falcon Rocksim Design File

Contributed by Bob Quance

• Manufacturer: Quest
• Motor Size: 18 mm
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 1
• Style: Sport

Comments: Drawn by Bob Quance

Designer: Quest Aerospace

Download oop_quest_falcon.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

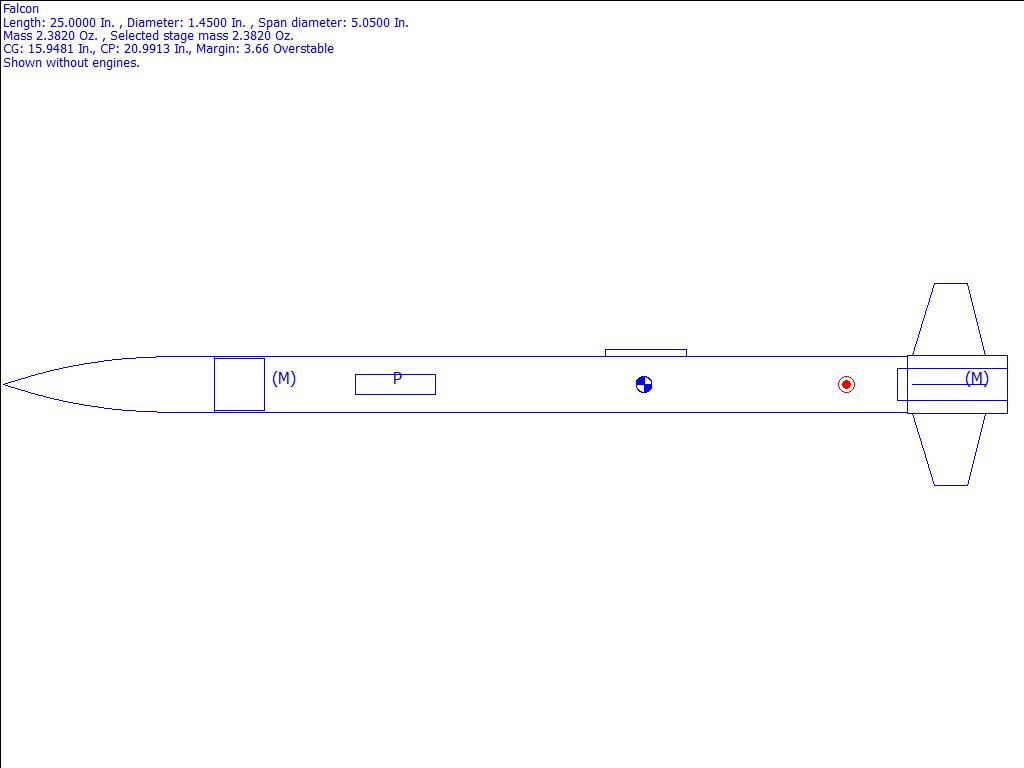

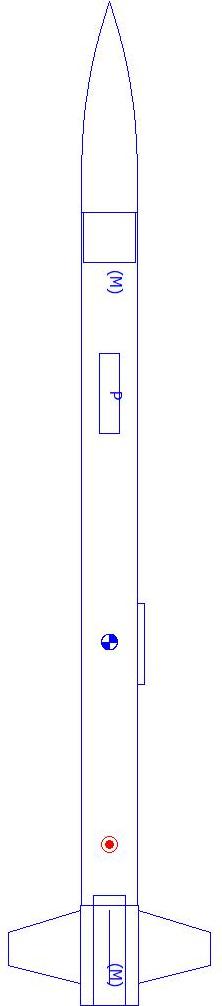

Kit Name: Quest - Falcon {Kit} (1006)
Diameter: 1.3780 inches
Length: 24.0000 inches
Style: Sport

CG: 15.9481 inches from front
CP: 20.9913 inches from front
Margin: 3.66 Overstable

Parts Breakdown

• Falcon Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.25 in]
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Custom Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]
• Bright Hawk Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Custom Mass Object
