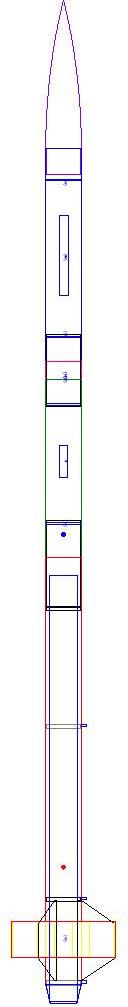

Galadriel - smallest motor Cesaroni K650SS Rocksim Design File

• Manufacturer: Scratch

Comments: M1400 casing weight 77.32 oz./ 22.02 lbs. casing + rocket/ 14:1 thrust/weight ratio

Designer: Jack Caynon (multiply altitude by .82 for ring fin offset)

Download scratch_galadriel.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Galadriel {Scratch}

Parts Breakdown

• Galadriel - smallest motor Cesar Nose Cone
• Public Missiles HDWE-UBOLT-SET Ubolt for FNCs Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Public Missiles CBP-3.9 Ring
• Public Missiles CBP-3.9 Ring
• b2 Rocketry 1.3 oz. Ripstop Nylon (SkyAngle) Parachute (53.73 in)
• LOC Precision SCTN-30 Tubular Nylon 9/16 In x 30 Ft Mass Object
• Public Missiles HDWE-UBOLT-SET Ubolt for FNCs Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Public Missiles CBP-3.9 Ring
• Public Missiles Ltd. CT-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 20.00 in]
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles CPR3K 3.9 system CPR3000 Mass Object
• Public Missiles CPR3K 3.9 system CPR3000 Mass Object
• Public Missiles HDWE-UBOLT-SET Ubolt for FNCs Mass Object
• Public Missiles CBP-3.9 Ring
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (21.82 in)
• LOC Precision SCTN-30 Tubular Nylon 9/16 In x 30 Ft Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Custom Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 48.00 in]
• Custom Launch Lug
• Custom Mass Object
• Public Missiles CR-3.9-3.0 Ring
• Public Missiles CR-3.9-3.0 Ring
• Public Missiles CR-3.9-3.0 Ring
• Public Missiles CR-3.9-3.0 Ring
• Custom Launch Lug
• Galadriel - smallest motor Cesar Freeform Fin Set
• Galadriel - smallest motor Cesar Freeform Fin Set
• Custom Ring
• Aero Pack Conical Transition
