GBU-24 Paveway III Rocksim Design File

Contributed by Joe Policy

Designer: Estes

Download oop_estes_gbu_24pavewayiii.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

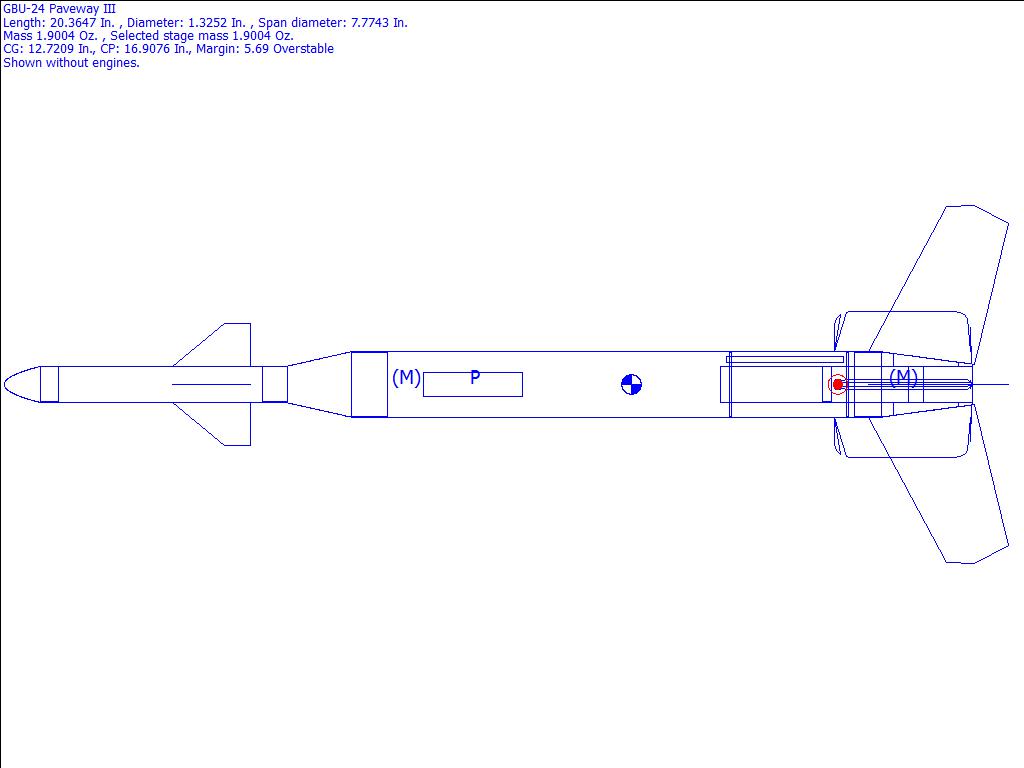

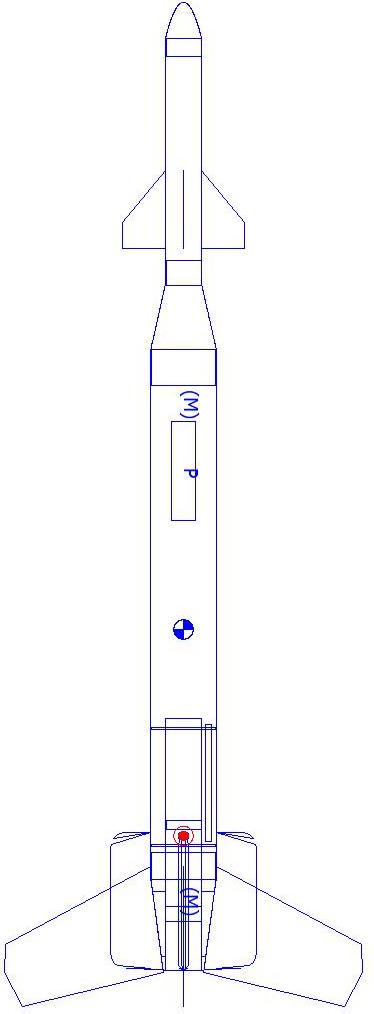

CG: 12.7209 inches from front
CP: 16.9076 inches from front
Margin: 5.69 Overstable

Parts Breakdown

• Estes Parabolic Nose Cone
• Estes Paper Body Tube (0.7360 in)
• Custom Balsa Trapezoid Fin Set
• Estes Conical Transition
• Estes Paper Body Tube (1.3250 in)
• Estes Paper Body Tube (0.7360 in)
• Estes Paper Ring (0.6508 - 0.7100 in)
• Estes Engine hook Standard size Mass Object
• Custom Kraft phenolic Ring (0.7360 - 0.7445 in)
• Estes Paper Ring (0.7360 - 1.2830 in)
• Estes Paper Ring (0.7360 - 1.2830 in)
• Custom Balsa Freeform Fin Set
• Custom Balsa Freeform Fin Set
• Custom Balsa Freeform Fin Set
• Estes Paper Launch Lug (0.1250 in)
• Estes Polyethylene LDPE Parachute (12.00 in)
• Custom Mass Object
• Custom Conical Transition
