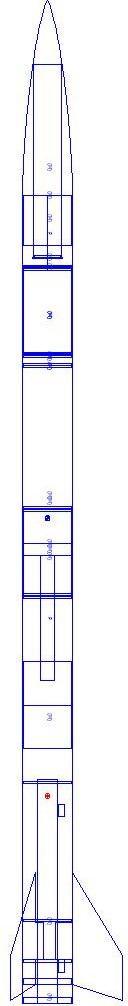

Hermes 2 - 38mm Dual Deployment Config - Modified Aerotech G-Force Rocksim Design File

Comments: This started out as a motor-mount-only modification for a Level 1 certification flight. After two successful flights (G77 and H128), decided to add dual-deployment.

Designer: Frank Hermes K6FBH Tripoli #012122 El Cajon, CA

Download mods_aerotech_gforce_with_38mm_dd.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 41.7322 inches from front
CP: 64.0686 inches from front
Margin: 5.54 Overstable

Parts Breakdown

• Hermes 2 - 38mm Dual Deployment Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 15.50 in]
• BeeLine GPS GPS Transmitter Mass Object
• Balsa 2.25 x 15 x 3/16 Balsa sled Mass Object
• Custom NC E-bay BH Screw Eye & wire loop Mass Object
• LOC Precision LOC BP-2.14 Ring
• LOC Precision LOC BP-2.56 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 28.00 in]
• SubAssembly
• Custom 1/8 Eyebolt 1/8x24 Mass Object
• Custom 1/8 Eyebolt 1/8x24 Mass Object
• Public Missiles CBP-3.9 Ring
• Public Missiles CBP-3.9 Ring
• Custom 1/4-20 x 8 All-thread w/mtg hrd 1/4-20 x 8 Mass Object
• Custom Elec bay plate Bplate w/hdwe Mass Object
• BeeLine TX Tracker Mass Object
• Custom 1/4-20 x 8 All-thread w/mtg hrd 1/4-20 x 8 Mass Object
• Giant Leap C-3.90 Ring
• Public Missiles CBP-3.9 Ring
• Public Missiles CBP-3.9 Ring
• Custom 1/8 Eyebolt 1/8x24 Mass Object
• Public Missiles CR-3.9-1.5 Ring
• LOC Precision LOC BP-3.90 Ring
• Custom Eye-bolt 1 Mass Object
• Custom Eye-bolt 1 Mass Object
• LOC Precision SCTN-20 Tubular Nylon 9/16 In x 20 Ft Mass Object
• Giant Leap LG-Fireball Large Fireball Mass Object
• Custom Rip stop nylon Parachute (36.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• Giant Leap BH-3.90 Ring
• Giant Leap BH-3.90 Ring
• Giant Leap C-3.90 Ring
• Custom E-bay hardware All-thread, wing nuts, sled, etc. Mass Object
• Ozark ARTS2 Altimeter Mass Object
• G-Wiz HCX w/2-9-volt batts Altimeter Mass Object
• LOC Precision LOC BP-3.90 Ring
• LOC Precision LOC BP-3.90 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (60.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Public Missiles Ltd. CT-3.90 Ring
• Public Missiles CCR-3.9-3.0 Ring
• Acme 4.00/.5 Launch Lug
• Aerotech G-Force Trapezoid Fin S Trapezoid Fin Set
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles CR-3.9-1.5 Ring
• Public Missiles CR-3.9-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Mass Object
• Giant Leap SLIM38 Slimline 38mm Retainer Mass Object
• Acme 4.00/.5 Launch Lug
• Custom Mass Object
• Public Missiles CCR-3.9-3.0 Ring
