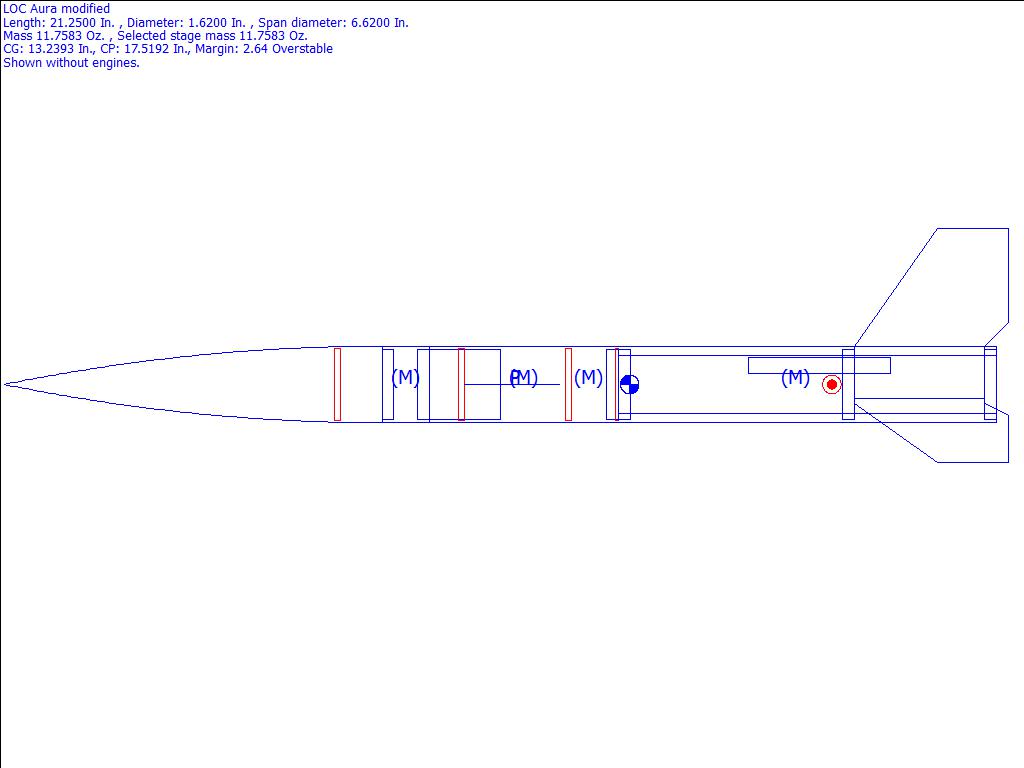

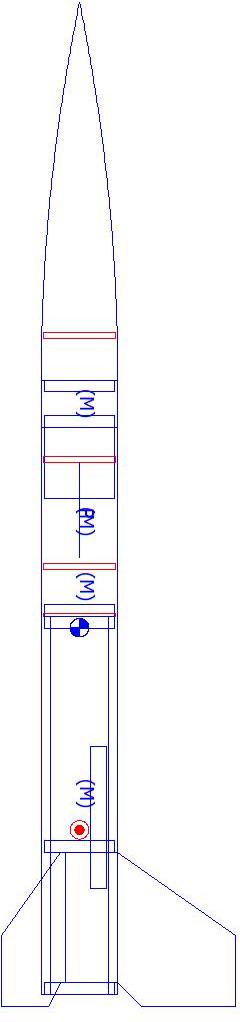

LOC Aura modified Rocksim Design File

Comments: Stock Kit Modified with Ebay for Pico P1 altimeter

Designer: LOC/Precision

Download mod_loc_aura_level1.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 13.2393 inches from front
CP: 17.5192 inches from front
Margin: 2.64 Overstable

Parts Breakdown

• LOC Aura modified Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 1.00 in]
• LOC Precision LOC BP-1.52 Ring
• Pico-P1 P1 Altimeter Mass Object
• Custom Ring
• LOC Precision LOC BP-1.52 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom added epoxy puddy Mass Object
• Custom Ring
• Custom Ring
• LOC Precision LOC BP-1.52 Ring
• Custom Ring
• Custom Mass Object
• LOC Precision LOC BP-1.52 Ring
• LOC Aura modified Freeform Fin S Freeform Fin Set
• Apo11o Rip stop nylon Parachute (12.00 in)
• Custom Mass Object
• Custom Launch Lug
• Custom Ring
