oop_estes_polaris.rkt Rocksim Design File

Contributed by Jason Myers

• Manufacturer: Estes
• Power: Low-Power
• Recovery: Parachute
• Skill Level: 2
• Style: Sport

Download oop_estes_polaris.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Estes - Polaris {Kit} (2174) [2001-2002]
Diameter: 1.3250 inches
Length: 19.5000 inches
Style: Sport

CG: 11.4544 inches from front
CP: 15.3337 inches from front
Margin: 3.97 Overstable

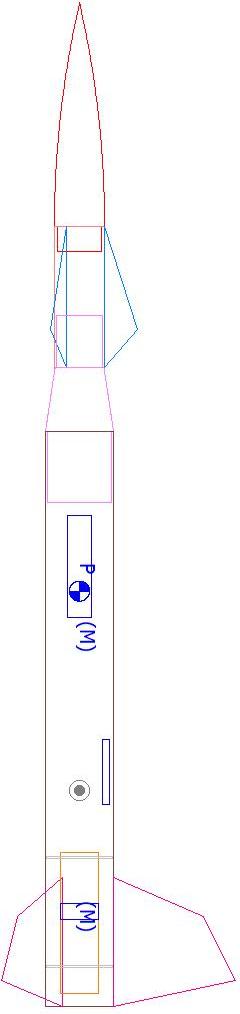

Parts Breakdown

• Estes Fireaero Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• oop_estes_polaris.rkt Freeform F Freeform Fin Set
• Custom Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 11.19 in]
• Estes 30125 Ring
• Estes 30125 Ring
• Custom Mass Object
• Estes Polyethylene LDPE Parachute (12.00 in)
• Estes ESTES 2321 Launch Lug
• oop_estes_polaris.rkt Freeform F Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.75 in]
• Estes Eng. Hook Sleeve Ring
• Estes Engine hook Standard size Mass Object
