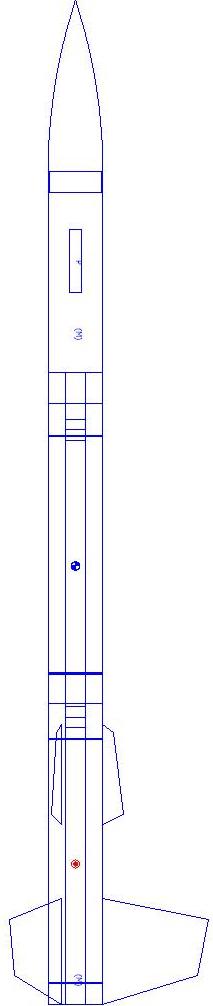

Optima Rocksim Design File

Contributed by Roger Banks

Comments: Stock Estes Optima (#2035), entered by Roger Banks

Designer: Estes

Download oop_estes_optima.rkt

To use the design file above, you need Rocksim which is available from Apogee's website.

CG: 26.8572 inches from front
CP: 41.0038 inches from front
Margin: 5.44 Overstable

Parts Breakdown

• Estes Ogive Nose Cone
• Estes Paper Body Tube (2.6000 in)
• Estes Paper Ring (2.4700 - 2.5880 in)
• Estes Paper Body Tube (0.9760 in)
• Estes Paper Ring (0.8850 - 0.9450 in)
• Custom Paper Ring (0.9760 - 2.5880 in)
• Estes Polyethylene LDPE Parachute (18.00 in)
• Custom Mass Object
• Estes Paper Body Tube (2.6000 in)
• Estes Paper Ring (2.4700 - 2.5880 in)
• Estes Paper Body Tube (0.9760 in)
• Estes Paper Ring (0.8850 - 0.9500 in)
• Custom Paper Ring (0.9760 - 2.5880 in)
• Custom Paper Ring (0.9760 - 2.5880 in)
• Estes Paper Body Tube (2.6000 in)
• Custom Basswood Freeform Fin Set
• Custom Basswood Freeform Fin Set
• Estes Paper Body Tube (0.9760 in)
• Custom Paper Ring (0.9760 - 2.5880 in)
• Custom Paper Ring (0.9760 - 2.5880 in)
• Estes Engine hook Standard size Mass Object
